PI091203S 3/8

#NSSP007435

Product Description

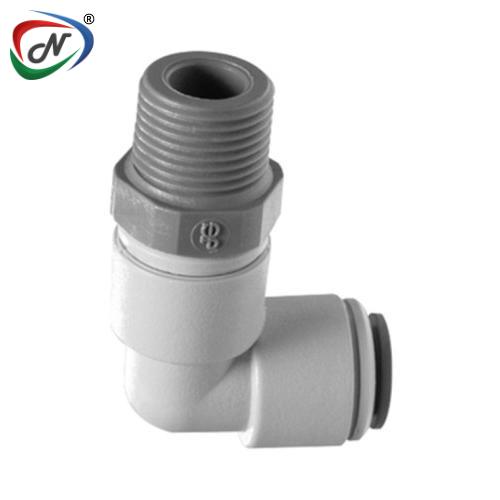

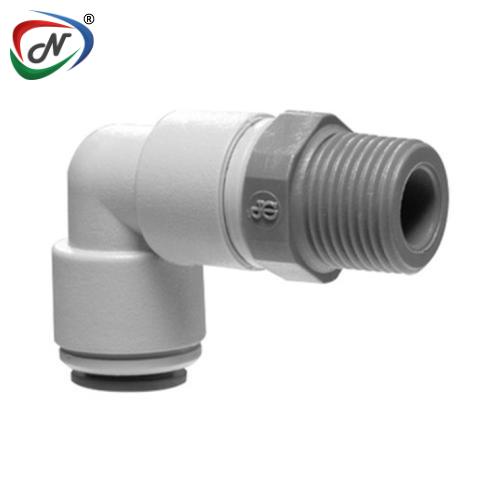

PI091203S 3/8"x 3/8" BSPT THREAD SWIVEL ELBOW

Quickly and easily connects imperial sized pipe to form a swivel type 90° pipe bend.

John Guest swivel elbow (BSPT thread) push-fit fitting converts a pushfit connection to a BSPT 90° swivel type connection. Fast and simple to install, John Guest Air and Pneumatics creates an instant connection and airtight seal without the need for tools, hot works or sealing agents. Air piping systems can be set up and installed 50% quicker than traditional methods.

The unique collet locking design firmly and securely holds the pipe in place without deforming the pipe or restricting flow. Fittings are also fully demountable, reducing system downtime during maintenance and making it quick and easy to modify or extend systems.

Designed in tough engineered plastic, fittings are compatible with John Guest nylon, powder coated aluminium or LLDPE tubing, as well as copper, PEXa and other soft metal pipe materials. All John Guest fittings are manufactured and assembled in the UK.

Features and benefits

Strong acetal copolymer fitting with nitrile O-Ring
Airtight connection with superior flow characteristics
Instant push-fit connection and demountable without tools
Secure collet cover prevents accidental disconnection
Suitable for air and pneumatics piping systems up to 10 bar
Ideal for air, inert gases and vacuum applications
Food grade fitting suitable for potable liquids
Compatible with soft metal or plastic pipe/tubing

Main Specifications:

SKU	Description	Pipe OD "	BSPT "	Quantity per bag	Quantity per box	Accreditations
PI090601S	Swivel Elbow (BSPT thread) 3/16" X 1/8"	3/16	1/8	10	200	BSI
PI090801S	Swivel Elbow (BSPT thread) 1/4" X 1/8"	1/4	1/8	10	200	BSI
PI090802S	Swivel Elbow (BSPT thread) 1/4" X 1/4"	1/4	1/4	10	200	BSI
PI091202S	Swivel Elbow (BSPT thread) 3/8" X 1/4"	3/8	1/4	10	100	BSI
PI091203S	Swivel Elbow (BSPT thread) 3/8" X 3/8"	3/8	3/8	10	100	BSI
PI091603S	Swivel Elbow (BSPT thread) 1/2" X 3/8"	1/2	3/8	10	50	BSI
