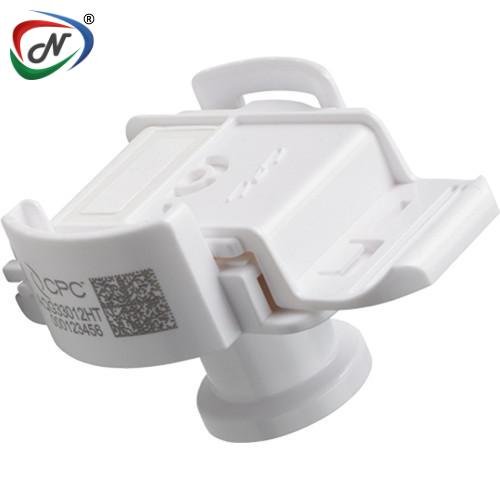

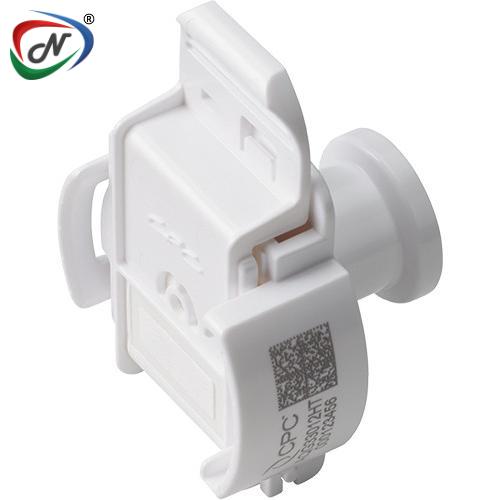

AQG33012HT 3/4 Sanitary AseptiQuik G Connector - High Temperature

#NSSP007933

Product Description

AQG33012HT 3/4 Sanitary AseptiQuik G Connector - High Temperature

Medical/ Biopharma Fitting

AseptiQuik® G Connectors provide quick and easy sterile connections, even in non-sterile environments—a critical capability for biopharmaceutical manufacturers. Featuring an easy to use three step design and a wide range of options—including 1/8- to 1 1/2 -inch sizes and genderless connections—the AseptiQuik family allows you to transfer media easily with less risk of error. Their robust, reliable performance eliminates the need for clamps, fixtures or tube welders, giving you sterile, high quality single-use connections every time.

Main Specifications:

Material: Polycarbonate, USP Class VI, ADCF
Material Finish: Molded White
Pressure Range: Up to 60 psi, 4.1 bar; Up to 75 psi, 5.1 bar for 48 hours
Color: White with blue pull tab
Mounting Option: Free Floating
Sterilization Method: Gamma
Temperature Range: 34°F - 104°F (1°C - 40°C)
Seal Options: Silicone, platinum-cured
Valve Options: Non-Valved
Body type: Genderless
Bag Qty: 5

Main Features & Benefits

Features		Benefits
	Genderless Design		Eases integration of single-use systems with universal mating between G connectors
	Robust construction		Repeatable and reliable performance with no additional hardware required
	FLIP-CLICK-PULL		Innovative three-step connection process reduces risk of operator error
	Integrated pull tab covers		Pull tabs act as protective cover reducing covers part complexity and ensure simultaneous removal of both membranes
	CPC Click		Audible confirmation of assembly
	Chemical Compatibility		AseptiQuik PPSU enables genderless connection for a greater range of chemical applications.
	pH range		AseptiQuik PPSU: Versatile connections across downstream processes with a pH range from 2 to 12
