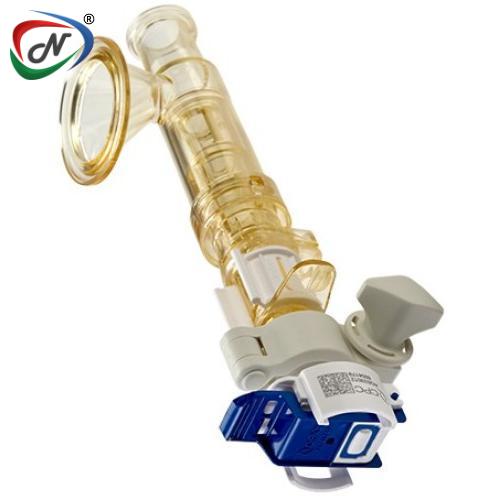

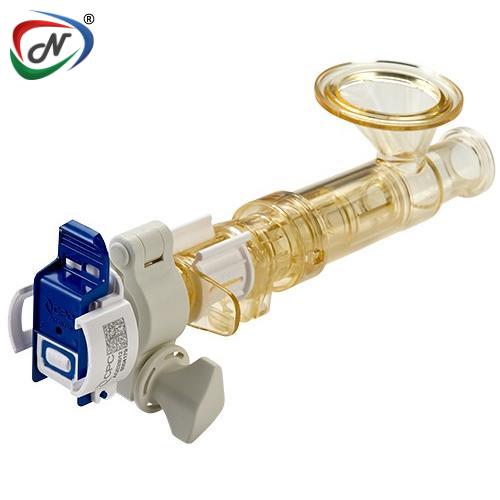

AQSSTC2331000 1-1/2 Sanitary Assy AQS STCII

AQSSTC2331000 1-1/2 Sanitary Assy AQS STCII

Medical/ Biopharma Fitting

AseptiQuik® STC Connectors integrate the AseptiQuik sterile connector and the Steam-Thru® II SIP connector, giving manufacturers flexibility between hybrid stainless steel and single-use processing equipment. The AseptiQuik STC connector combines either an AseptiQuik G, AseptiQuik S or AseptiQuik C sterile connector with a Steam-Thru II connection that can be mounted directly to stainless steel processing equipment via a sanitary termination. AseptiQuik STC connectors utilizing an AseptiQuik G or S sterile connector offer a genderless design, simplifying system integration at the aseptic connector end. AseptiQuik STC connectors utilizing an AseptiQuik C sterile connector allow system designers to incorporate a keyed female-to-male connection at the aseptic connector end.

The union of the two connectors into a single unit through a sanitary clamp allows an AseptiQuik sterile connection to be steamed on to stainless equipment via SIP. After the SIP cycle, a wide range of single-use systems can be connected. The SIP process can be done in advance allowing a quick and easy sterile connection to the AseptiQuik half without having to wait 30-60 minutes for SIP prior to harvest.

Main Features:

• AseptiQuik design
• Genderless Design
• Robust Construction
• Patented Steam Valve Design
• Sanitary Interface Between the Two Connectors
• CPC Click

• Market Availability

Main Benefits:

• Innovative three-step connection process reduces risk of operator error
• Eases integration of single-use systems with universal mating between AseptiQuik G Connectors
• Repeatable and reliable performance with no additional hardware required
• Allows sterile connection and disconnection to stainless equipment and permits a high media flow rate.
• More secure connection than tubing with cable ties
• Audible confirmation of assembly steps
• Open access through multiple supply chain partners

Main Specifications:

• Material:  Polycarbonate, USP Class VI, ADCF
• Material Finish: Molded White
• Pressure Range: Steam Position: Up to 35 psi, 2.4 bar / Flow Position: Up to 20 psi, 1.4 bar
• Color: White with white pull tab
• Mounting Option: Free Floating
• Sterilization Method: Gamma, autoclave
• Temperature Range: 34°F - 104°F (1°C - 40°C)
• Seal Options:  Silicone, platinum-cured
• Valve Options:  Non-Valved
• Body type: Genderless
• Bag Qty: 1
