AQW17024HT 1-1/2

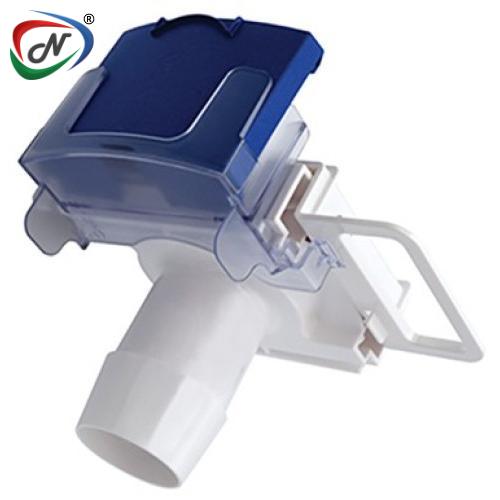

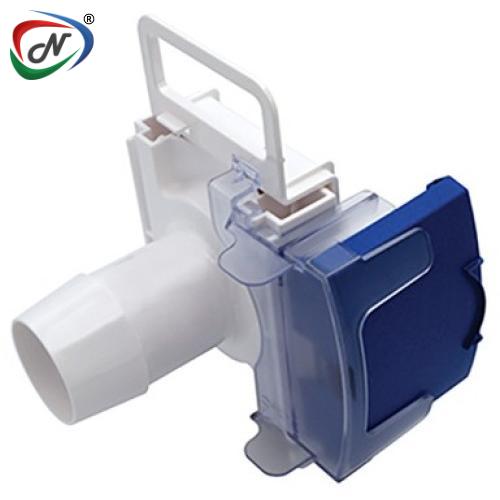

AQW17024HT 1-1/2" Hose Barb AseptiQuik W Connector, High Temperature

Medical/ Biopharma Fitting

Genderless AseptiQuik® W Connectors with nominal 1.5" flowpath enable quick and easy sterile connections, in large-volume, high-flow production, and process intensification environments. The 1", 1 ¼”, and 1 ½” genderless design simplifies system integration and minimizes the risk of operator error.  The connectors’ robust construction provides reliable performance without the need for clamps or fixtures. Biopharmaceutical manufacturers benefit from interchangeable 1", 1 ¼”, and 1 ½” flow solutions for full-scale bioprocessing production environments with the quality and market availability they expect from the leader in the single-use connection technology.

Main Specifications:

• Material:  Polycarbonate, USP Class VI, ADCF
• Material Finish: Molded White
• Pressure Range: Up to 60 psi, 4.1 bar
• Color: White with blue tab covers
• Mounting Option: Free Floating
• Sterilization Method: Gamma, autoclave
• Temperature Range: 34°F - 104°F (1°C - 40°C)
• Seal Options:  Silicone, platinum-cured
• Valve Options:  Non-Valved
• Body type: Genderless
• Bag Qty: 5

Main Features:

• Genderless design
• Robust construction
• FLIP-CLICK-PULL
• Integrated pull tab covers
• CPC Click
• 1/4" Sanitary termination with straight bore

Main Benefits:

• Ease single-use systems specifications with one part number for both halves
• Intuitive three-step connection process reduces risk of operator error
• Pull tabs act as protective cover reducing part complexity and ensure simultaneous removal of both membranes
• Repeatable and reliable performance with no additional hardware required
• Audible confirmation of assembly
• Minimizes transitional flow disruptions through upstream processing
