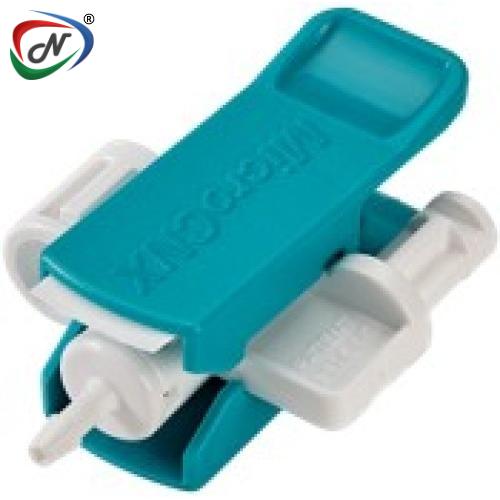

CNX17003HT 3/32 Hose Barb MicroCNX Connector

CNX17003HT 3/32 Hose Barb MicroCNX Connector

Medical/ Biopharma Fitting

MicroCNX® aspetic connectors are the only micro-connectors that provide a simple, efficient method of connecting tubing for small-format biomanufacturing assemblies. The MicroCNX series is engineered specifically for the challenging conditions of biological media transfer in bioprocessing, cell therapy, and gene therapy applications. The connector comes in a range of tubing sizes featuring a luer connection option to create a sterile, closed connection on an existing luer connection. The ULT/Nano versions are ideal for assemblies in cryogenic freezing cassettes or connection to PVC tubing.

Main Features:

• Aseptic, single-use connection technology
• Ultra-Low Tempaerature and Chemical compatability
• Easy-to-use
• PULL-CLICK-PULL
• Genderless
• CPC Click
• PVC tubing
• Low and ultra-low profiles
• Low Hold-up Volume

Main Benefits:

• The future of making aseptic connections in cell & gene therapy biomanufacturing
  Do not have to make connections in the Bio Safety Cabinet (BSC)
  A better option for small format tubing where tube welding fails - the only aseptic media transfer method that consistently and reliably transfers aseptic fluid at 1/16"" tubing
• Termination and flow path are made from PPSU to allow for increased chemical compatibility without deterioration, and able to handle harsh chemicals like liquid nitrogen and Dimethly Sulfoxide (DMSO)
  Can be frozen down to vaporized liquid nitrogen temperature (-190C)  (MicroCNX ULT and MicroCNX Nano)
• Lowers risk of operator error and related performance, reliability and safety concerns
• Intuitive three-step connection process reduces risk of operator error
• Eases single-use systems specifications with one part number for both halves
• Audible confirmation of assembly with no additional hardware required
• Fully compatibility with all PVC tubing (MicroCNX ULT and MicroCNX Nano)
• The smallest profile with a compact size that fits in freeze cassettes (MicroCNX ULT and MicroCNX Nano)
• Minimize lost fluid during tranfers

Main specifications:

• Material:  Polycarbonate, USP Class VI, ADCF
• Material Finish: Molded White
• Pressure Range: Up to 60 psi, 4.1 bar for 30 days; Up to 75 psi, 5.1 bar for 48 hours
• Color: White with Teal Cover
• Mounting Option: Free Floating
• Sterilization Method: Gamma, Autoclave
• Temperature Range: 34°F - 104°F (1°C - 40°C)
• Seal Options:  Silicone, platinum-cured
• Valve Options:  Non-Valved
• Body type: Genderless
• Bag Qty: 25
