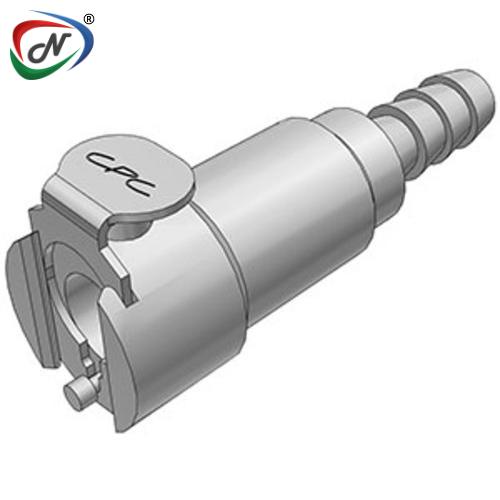

17200 1/4 Hose Barb Valved In-Line Coupling Body (MCD1704 NSF)

#NSSP004250

Product Description

17200 1/4 Hose Barb Valved In-Line Coupling Body (MCD1704 NSF)

The chrome-plated brass coupling insert, 17200 1/4 Hose Barb Valved In-Line Coupling Body (MCD1704 NSF), is part of the MC Series which is known for its durability and ability to withstand tough conditions.

These couplings are ideal for demanding applications, particularly those with high temperatures or pressures. With easy one-hand operation, the MC Series couplings allow for quick and effortless connections and disconnections.

Moreover, the MC NSF parts meet the NSF/ANSI Standards, ensuring quality and reliability. These couplings offer versatility with multiple configurations and terminations and are compatible with both PMC acetal and PMC12 polypropylene couplings.

Main Specifications:

Material: Brass
Material Finish: Chrome
Color: Chrome
Mounting Option: Free Floating
Temperature Range: -40°F - 180°F (-40°C - 82°C)
Seal Options: FDA BUNA-N
Valve Spring: 316 Stainless Steel
Valve Options: Valved
Body Type: Body
Bag Qty: 10

Features – Benefits:

Brass material - Durable and able to withstand higher pressure and temperature
High temperature capability - Versions rated to 400°F (204°C)
CPC thumb latch - One-hand connection and disconnection
Compatible - MC mates with PMC and PMC12 Series couplings
