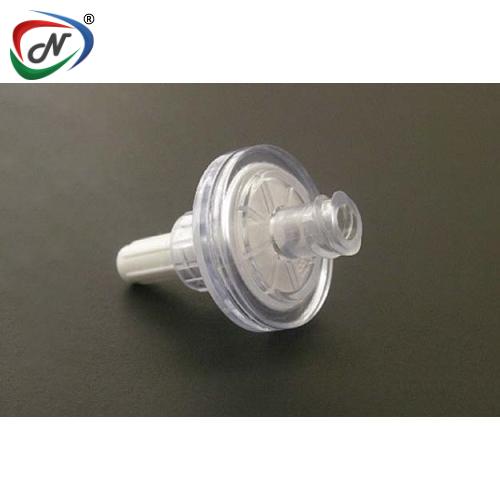

MPC-85 TE Transducer Protector - Sterile - Tamper Evident, Individually Packaged
#NSSP007446
Product Description
MPC-85 TE Transducer Protector - Sterile - Tamper Evident, Individually Packaged
MPC-85 TE TRANSDUCER PROTECTORS In-Line Protective Devices for Pressure Monitors on Haemodialysis Equipment
Hemodialysis equipment with in-line protective devices for pressure monitors.
Hemodialysis Transducer Protectors combine barrier properties with airflow to provide the best possible level of protection. As a result of the high airflow through the MPC-85 Transducer Protector membrane, hemodialysis equipment can react quickly to changes in blood pressure, so that patients receive the best possible care.
Part Number | Packaging |
MPC-85 | Bulk Packaged 300 pcs. per box / 7,500 pcs. per case |
MPC-85TE | Tamper Evident Individually Packaged 125pcs. Per box / 2,750 pcs. Per case |
Dialysis fluid and blood are protected from sensitive transducers.
Special Features:
- Hydrophobic membrane with 0.2-micron pore size.
- Ensures that the internal pressure monitoring lines are not contaminated.
- Sterile, Non-Pyrogenic!
- Handle is ridged around the outside for better grip.
- Fast response!
- Helps prevent cross-contamination of both bacteria and viruses.
Comparable to :
- B.Braun* Part # 7210496 Medivators* Part # 78398-402
Dimensions:
- Inlet to outlet: 1.1? (23mm)
- Diameter: .9" (20mm)
- Filtration Area: 1.5 cm²
Materials:
- Housing:PVC
- Hydrophobic Membrane: PTFE(Goretex)
- Membrane pore size: 0.2µm
Connections:
- Line Side: Standard Luer Lock
- Machine Side: Standard Luer Lock
- Pressure Limit: 35 PSI Inlet
- Characteristics: High Flow / Fast Response
Weight | 1074 g |
Dimensions | 12.00 × 8.00 × 5.00 in |
Style | MPC-85 Standard, MPC-85TE Tamper Evident |
Medical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP007446 |
| Manufacturer Code | MPC-85 TE |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Parts / Accessories |
