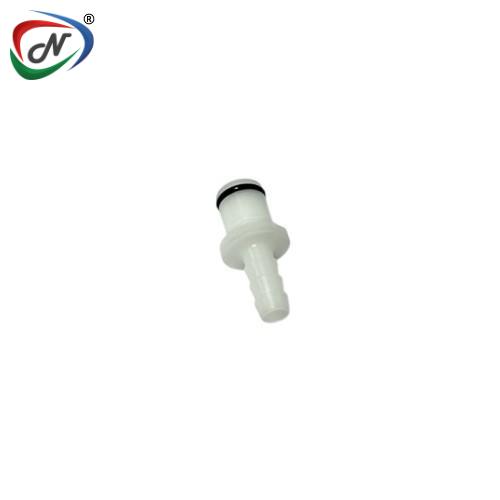

PLC22004 1/4 Hose Barb Non-Valved In-Line Acetal Coupling Insert
#NSSP003177
Product Description
PLC22004 1/4 Hose Barb Non-Valved In-Line Acetal Coupling Insert
Main Features:
- Single thumb latch
- Latch always in position to accept insert
- Compact, modular design
- Independent quick connections
Main Benefits:
- Minimizes inadvertent latch activation
- Ensures leak-free operation
- Fits well in the hand and is easy to wipe down
- Requires minimal manual dexterity
Main Specifications:
- Material: Acetal
- Material Finish: Natural
- Pressure Range: Vacuum to
120 psi, 8.3 bar
- Color: White
- Mounting Option: Free
Floating
- Temperature Range: -40°F -
180°F (-40°C - 82°C)
- Seal Options: BUNA-N
- Valve Option: Non-Valved
- Body Type: Insert
- Bag Qty: 25
|
COUPLING INSERT |
ACETAL |
|
TERMINATION |
IN-LINE
HOSE BARB |
|
TUBING/THREAD
SIZE |
1/4" ID |
|
HEX |
6.4 mm
ID |
|
STRAIGHT
THRU |
PLC22004 |
|
SHUTOFF |
PLCD22004 |
|
A
(Height/Diameter) |
0.62 (15.7) |
|
B
(Total Length) |
1.35/1.99
(34.3/50.6) |
*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters.
WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
Note: Image is just for ref.
Click to download : CPC-PLC-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP003177 |
| Manufacturer Code | PLC22004 |
| HSN Code | 39174000 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Weight | 0.002kg |
| Type | Quick Fittings |
