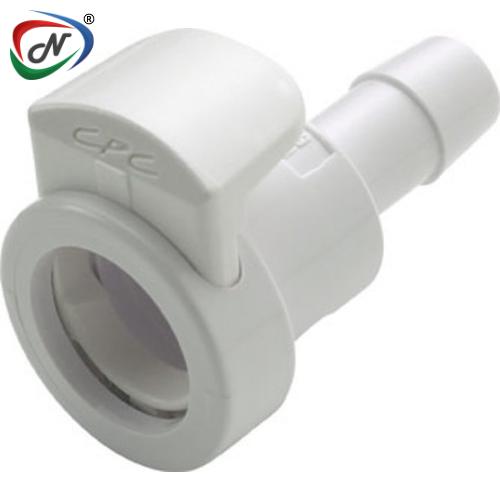

MPC17004T 1/4 Hose Barb Non-Valved In-Line Coupling Body
#NCPCMPC17004T
Product Description
MPC17004T
1/4 Hose Barb Non-Valved In-Line Coupling Body
Main Features:
A thumb latch that is ergonomically designed .Materials classified as Class VI by the USP .sterilizable by autoclave, Etc, e-beam, and gamma radiation .The hose barb is parting line-free .- BSE/TSE free materials
Main Benefits:
Even when wearing gloves, this device is easy to operate .Meet the biocompatibility requirements.Designed for single-use applications that are robust and economical .- Eliminates potential leak
path.
- Meet ADCF requirements.
Main Specifications:
·
Material:
ABS
· Material Finish: Molded white
· Color: White
· Mounting Option: Free Floating
· Sterilization: Gamma
· Temperature Range: -40°F - 160°F (-40°C - 71°C)
· Valve Option: Non-Valved
· Body Type: Body
·
Bag Qty: 250
TERMINATION | ABS IN-LINE HOSE BARB |
TUBING/THREAD SIZE | 1/4" ID |
METRIC EQ | 6.4mm ID |
STRAIGHT THRU | MPC17004T |
FLOW | 0.21" |
A (Height/Diameter) | 0.96 (24.4) |
B (Total Length) | 1.3 (27.9) |
WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
Note: Image is just for ref.
Click to download : CPC-MPC-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NCPCMPC17004T |
| Manufacturer Code | MPC17004T |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
