MPC22006T 3/8 Hose Barb Non-Valved Coupling Insert
#NCPCMPC22006T
Product Description
MPC22006T
3/8 Hose Barb
Non-Valved Coupling Insert
Main Features:
A thumb latch that is ergonomically designed .Materials classified as Class VI by the USP .sterilizable by autoclave, Etc, e-beam, and gamma radiation .The hose barb is parting line-free .- BSE/TSE free materials
Main Benefits:
Even when wearing gloves, this device is easy to operate .Meet the biocompatibility requirements.Designed for single-use applications that are robust and economical .- Eliminates potential leak path.
- Meet ADCF requirements.
Main Specifications:
· Material: ABS
· Material Finish: Molded white
· Pressure Range: Up to 60 psi, 4.1 bar
· Color: White
· Mounting Option: Free Floating
· Sterilization: Gamma
· Temperature Range: -40°F - 160°F (-40°C - 71°C)
· Seal Options: Buna-N USP Class V
· Valve Option: Non-Valved
· Body Type: Insert
· Bag Qty: 250
COUPLING INSERT - ABS
TERMINATION | ABS IN-LINE HOSE BARB |
TUBING/THREAD SIZE | 3/8" ID |
METRIC EQ | 9.5mm ID |
FLOW | 0.29" |
STRAIGHT THRU | MPC22006T |
O-RING | Buna-N Seal USP ClassV |

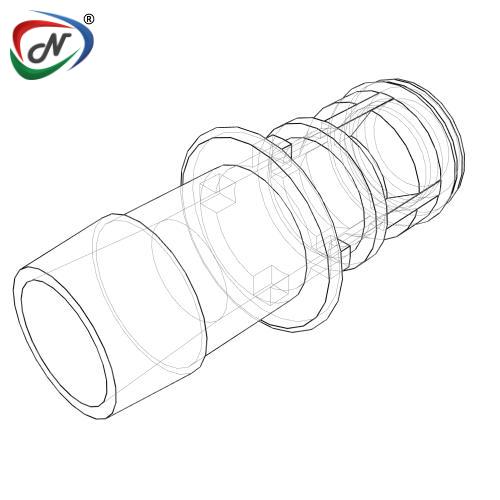

A (Height/Diameter) | 0.6 (15.2) |
B (Total Length) | 1.3 (33.0) |
*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters.
WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.

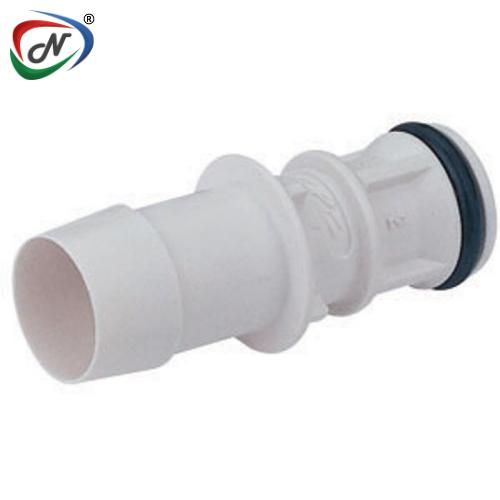

Note: Image is just for ref.
Click to download : CPC-MPC-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NCPCMPC22006T |
| Manufacturer Code | MPC22006T |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
