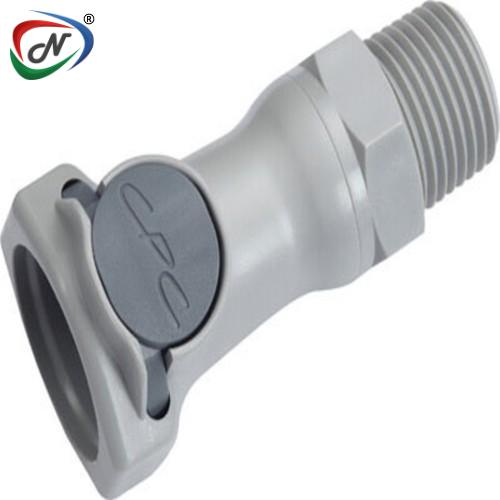

HFC10812 1/2 NPT Non-Valved Coupling Body

#NSSP005155

Product Description

HFC10812

1/2 NPT Non-Valved Coupling Body

Main Features:

High Efficiency Valve

Ergonomic Design

Polypropylene Material

Compatible

Main Benefits:

More flow in a compact size

Easy to grip, simple to operate

Chemically resistant & gamma sterilizable

Mates with HFC35 & HFC57 couplings

Main Specifications:

Material: Polypropylene

Material Finish: Molded Grey

Pressure Range: Vacuum to 60 psi, 4.2 bar

Color: Grey

Mounting Option: Thread

Temperature Range: 32°F - 160°F (0°C - 71°C)

Seal Options: EPDM

Valve Spring: 316 Stainless Steel

Valve Option: Non-Valved

Body Type: Body

Bag Qty: 10
COUPLING BODIES - Polypropylene

TERMINATION	IN-LINE PIPE THREAD
TUBING/ THREAD SIZE	1/2" NPT
STRAIGHT THRU	HFC10812
SHUTOFF	HFCD10812
A(Height/Diameter)	1.44 (36.6)
B( Total Length)	2.88 (73.2)

*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters.

Note: Image is just for ref.

WARNING: Pressure, temperature, chemicals, and operating environment can affect the performance of couplings. It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
