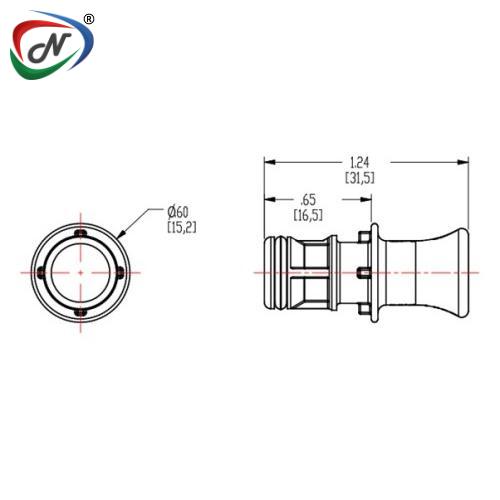

MPC30039M Class VI Polysulfone Coupling Body Plug with Class VI Silicone O-Ring
#NSSP007432
Product Description
MPC30039M Class VI Polysulfone Coupling Body Plug with Class VI Silicone O-Ring
MPC connectors serve as versatile, open-format connectors designed for a diverse range of essential fluid-handling applications. This specific type of connector is ideally suited for smaller bag systems intended for aliquoted media or other products contained within bags.
Main Features:
- A thumb latch that is ergonomically designed.
- Materials classified as Class VI by the USP.
- sterilizable by autoclave, Etc, e-beam, and gamma radiation.
- The hose barb is parting line-free.
- BSE/TSE free materials
Main Benefits:
- Even when wearing gloves, this device is easy to operate.
- Meet the biocompatibility requirements.
- Designed for single-use applications that are robust and economical.
- Eliminates potential leak path.
- Meet ADCF requirements.
Main Specifications:
- Material: Polysulfone, USP Class VI, ADCF
- Temperature Range: -40°F - 250°F (-40°C - 121°C)
- Material Finish: Natural
- Sterilization Method: Gamma, autoclave
- Seal Options: Silicone,
platinum-cured, USP Class VI, ADCF
- Color: Amber Tint
- Mounting Option: Free Floating
- Pressure range: Up to 60 psi, 4.1 bar
- Valve Options: Not
Valved
- Body Type: Caps & plugs
- Bag Qty: 250
Click to download : CPC-MPC-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP007432 |
| Manufacturer Code | MPC30039M |
| HSN Code | 39174000 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
