MPC17006T39 3/8 Hose Barb Non-Valved In-Line Class VI Polycarbonate Coupling Body
#NSSP007431
Product Description
MPC17006T39 3/8 Hose Barb Non-Valved In-Line Class VI Polycarbonate Coupling Body
MPC connectors serve as versatile, open-format connectors designed for a diverse range of essential fluid-handling applications. This specific type of connector is ideally suited for smaller bag systems intended for aliquoted media or other products contained within bags.
Main Specifications:
- Material: Polysulfone, USP Class VI, ADCF
- Material Finish: Natural
- Pressure Range: 60 psi, 4.1 bar
- Color: Amber tint
- Mounting Option: Free Floating
- Sterilization Method: Gamma, autoclave
- Temperature Range: -40°F - 300°F (-40°C - 149°C)
- Seal Options: Silicone, platinum-cured
- Valve Options: Non-Valved
- Body Type: Bodies
- Bag Qty: 250
Main Features:
- A thumb latch that is ergonomically designed.
- Materials classified as Class VI by the USP.
- sterilizable by autoclave, Etc, e-beam, and gamma radiation.
- The hose barb is parting line-free.
- BSE/TSE free materials
Main Benefits:
- Even when wearing gloves, this device is easy to operate.
- Meet the biocompatibility requirements.
- Designed for single-use applications that are robust and economical.
- Eliminates potential leak path.
- Meet ADCF requirements.

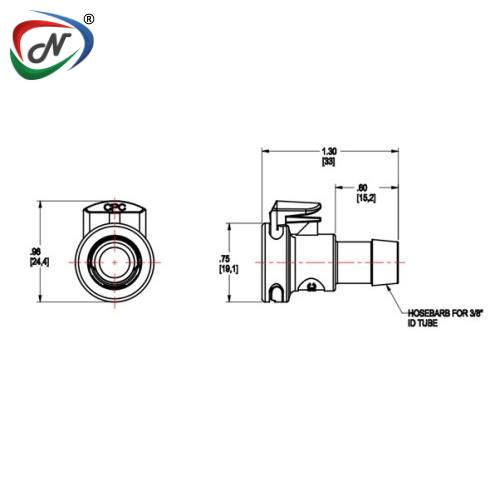

COUPLING BODIES - Polysulfone
TERMINATION | POLYSULFONE IN-LINE HOSE BARB |
TUBING/THREAD SIZE | 3/8" ID |
METRIC EQ. | 9.5mm ID |
FLOW | 0.29" |
STRAIGHT THRU | MPC17006T39 |
A (Height/Diameter) | 0.96 (24.4) |
B (Total Length) | 1.1 (27.9) |
*All measurements are in inches (millimetres) unless otherwise noted.
WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
Note: Image is just for ref.
Click to download : CPC-MPC-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP007431 |
| Manufacturer Code | MPC17006T39 |
| HSN Code | 39174000 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
