APC17004SH 1/4 Hose Barb In-Line Non-Valved Body with Shroud
#NSSP003188
Product Description
APC17004SH
1/4 Hose Barb In-Line Non-Valved Body with Shroud
Main Features:
- Plastic thumb latch
- Shrouded thumb latch
- Integral terminations
- Compatible
Main Benefits:
- No exposed metal parts
- Protects against accidental disconnects
- Fewer leak points, shorter assemblies, faster installations
- Mates with most EFC couplings
Main Specifications:
- Material: Acetal
- Material Finish: Natural
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Color: White
- Mounting Option: Panel Mount
- Temperature Range: -40°F - 180°F (-40°C - 82°C)
- Valve Option: Non-Valved
- Body Type: Body
- Bag Qty: 25
- COUPLING BODY- Acetal
TERMINATION | IN-LINE HOSE BARB |
TUBING/THREAD SIZE | 1/4" ID |
METRIC EQ. | 6.4mm ID |
STRAIGHT THRU | APC17004SH |
SHUTOFF | APCD17004SH |
A(Height/Diameter) | 1.3 (33.0) |
B (Total Length) | 2.07 (52.6) |
*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters.

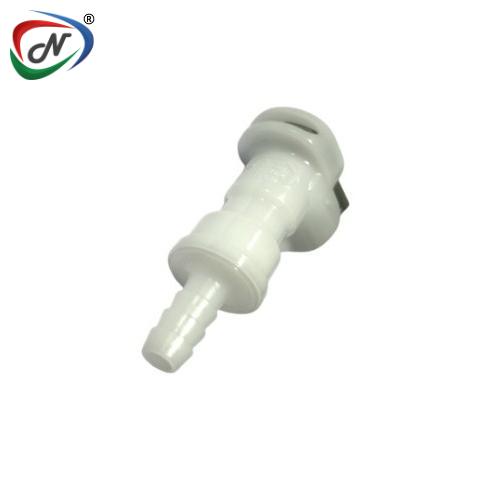

Note: Image is just for ref.
Click to download : CPC-APC-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP003188 |
| Manufacturer Code | APC17004SH |
| HSN Code | 39174000 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
