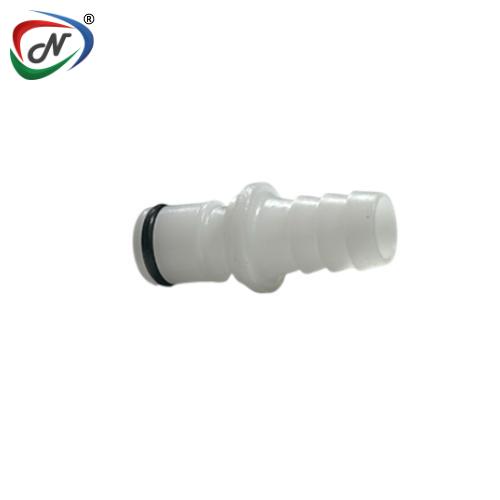

APC22006 3/8 Hose Barb Non-Valved In-Line Coupling Insert
#NSSP003450
Product Description
APC22006 3/8 Hose Barb Non-Valved In-Line Coupling Insert
MAIN FEATURES:
- Plastic Thumb Latch
- Shrouded Thumb Latch
- Integral Terminations
- Compatible
MAIN BENEFITS:
- No Exposed Metal Parts.
- Protects against accidental disconnects.
- Fewer leak points, shorter assemblies, faster installations.
Main Specifications:
- Material: Acetal
- Material Finish: Natural
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Color: White
- Mounting Option: Free Floating
- Temperature Range: -40°F - 180°F (-40°C - 82°C)
- Seal Options: BUNA-N
- Valve Options: Non-Valved
- Body Type: Inserts
- Bag Qty: 250
COUPLING INSERT - ACETAL
TERMINATION | IN-LINE HOSE BARB |
TUBING/THREAD SIZE | 3/8" ID |
METRIC EQ | 9.5mm ID |
STRAIGHT THRU | APC22006 |
SHUTOFF | APCD22006 |
A (Height/Diameter) | 0.63/0.72 (16.0/18.3) |
B (Total Length) | 1.40/1.92 (35.6/48.8) |
*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters.
WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
Note: Image is just for ref.
Click to download : CPC-APC-Spec-SheetWater Purification
Medical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP003450 |
| Manufacturer Code | APC22006 |
| HSN Code | 39174000 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Weight | 0.002kg |
| Type | Quick Fittings |
