LQ4D47004BLU 1/4

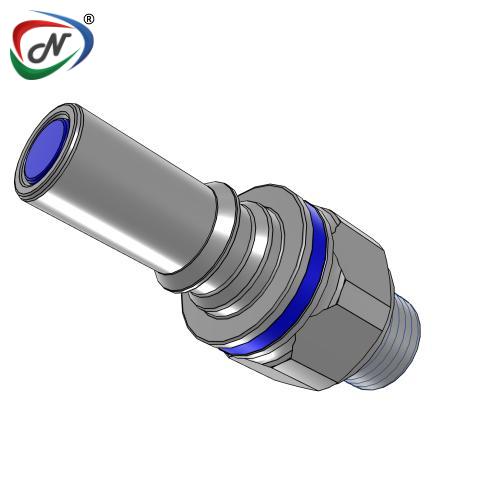

LQ4D47004BLU 1/4" Flow Everis LQ4 with 1/4" G-thread/BSPP, Valved In-Line Liquid Cooling Coupling Insert

Main Features:

• Non-Spill Design
• Redundant Multi-Lobed Seals
• High Flow Capacity with Low Pressure Drop
• EPDM Or FKM Seals
• Ergonomic Body and Latch Design
• Colour Coding
• Low Profile
• Barbed & Threaded Terminations

Main Benefits:

• Disconnect Under Pressure with no Spills
• Extra Protection from Leaks over an Extended period of Time.
• Efficient, Cost-Effective Cooling System
• Options Support common coolants used in liquid cooling applications (i.e., Glycol/Water, Mineral Oil, Synthetic Oils, Electro cool)
• Simple, Intuitive One-Handed Operation of Latch. Audible Click Signals Secure Connection
• Instant Visual Identification of Cooling Lines.
• Meets size requirements for Space- Constrained Electronics
• Compatibility with various tubing options including reinforced tubing

Main Specifications:

• Material: Brass
• Material Finish: Chrome
• Pressure Range: Vacuum to 120 psi, 8.3 bar
• Color: Metallic with cool blue
• Mounting Option: Thread
• Temperature Range: 0°F - 240°F (-17°C - 115°C)
• Seal Options: EPDM
• Valve Spring: Stainless Steel
• Valve Option: Valved
• Body Type: Insert
• Spillage: <0.025 cc per disconnect rated at 0 psi; <0.055 cc per

                              disconnect rated at 120 psi; <0.025 cc per connect

• Shipping/Storage Temperature Range: -40°F to 240°F (-40°C to 115°C)
• Bag Qty: 10

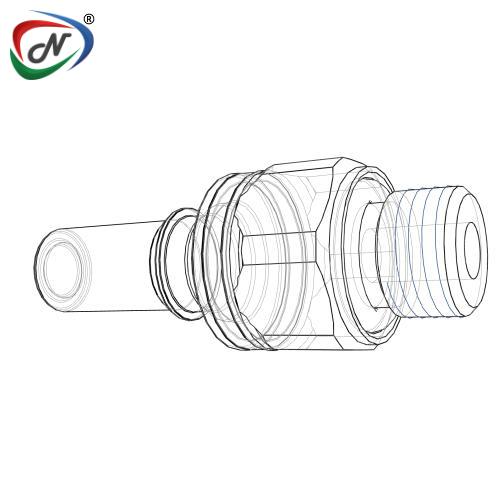

COUPLING INSERT - Nickel-chrome plated brass

*All measurements are in inches (millimetres) unless otherwise noted. All G (BSPP) terminations are compatible with ISO 1179-1 ports.

WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.

Note: Image is just for ref.
