LQ8D30012 Everis SAE-12 Valved In-Line Body
#NSSP006520
Product Description
LQ8D30012 Everis SAE-12 Valved In-Line Body
Main Features:
- Non-Spill Design
- Redundant Multi-Lobed Seals
- High Flow Capacity with Low Pressure Drop
- EPDM Or FKM Seals
- Ergonomic Body and Latch Design
- Low Profile
- Barbed & Threaded Terminations
Main Benefits:
- Disconnect Under Pressure with no Spills
- Extra Protection from Leaks over an Extended period of Time.
- Efficient, Cost-Effective Cooling System
- Options Support common coolants used in liquid cooling applications (i.e., Glycol/Water)
- Simple, Intuitive One-Handed Operation of Latch. Audible Click Signals Secure Connection
- Meets size requirements for Space- Constrained Electronics
- Compatibility with various tubing options including reinforced tubing.
Main Specifications:
- Material: Brass
- Material Finish: Chrome
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Mounting Option: In-Line
- Temperature Range: 0°F - 240°F ((-17°C) - 115°C)
- Seal Options: EPDM
- Valve Spring: Stainless Steel
- Valve Option: Valved
- Body Type: Bodies
- Shipping/Storage Temperature Range: -40°F to 240°F (-40°C to 115°C)
- Spillage: <0.033 cc per disconnect at 0 psi, <0.042 cc per disconnect at 30 psi
- Bag Qty: 10

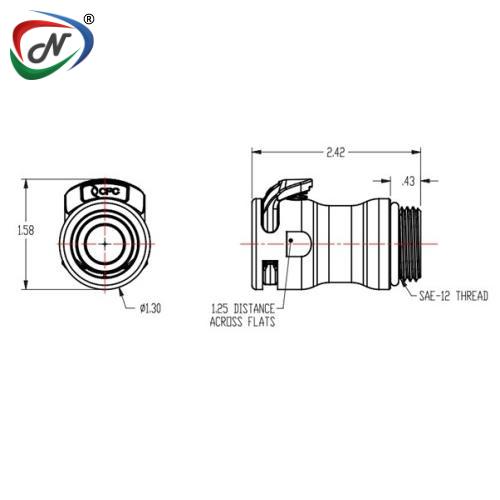

TERMINATION | IN-LINE STRAIGHT THREAD SAE |
TUBING/THREAD SIZE | 3/4 SAE-12: 1-1/16-121,3 |
HEX | 1 - 1/4" |
SHUTOFF | LQ8D30012 |
A(Height/Diameter) | 1.58 (40.1) |
B (Total Length) | 2.58 (65.6) |
C(Connected length) | 2.15 (54.6) |
*All measurements are in inches (millimetres) unless otherwise noted.
Click to download : CPC-Everis-LQ8-Spec-Sheet Click to download : LQ8D30012 Everis SAE-12 Valved In-Line Body Everis LQ8 Dimensions/Design Medical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP006520 |
| Manufacturer Code | LQ8D30012 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
