LQ6D22006LBLU 3/8 Locking HB Valved In-Line Insert - Blue
#NSSP006476
Product Description
LQ6D22006LBLU 3/8 Locking HB Valved In-Line Insert - Blue
Main Features:
- Non-Spill
Design
- Redundant
Multi-Lobed Seals
- High
Flow Capacity with Low Pressure Drop
- EPDM
Or FKM Seals
- Ergonomic
Body and Latch Design
- Colour
Coding
- Low
Profile
- Barbed
& Threaded Terminations
Main Benefits:
- Disconnect
Under Pressure with no Spills
- Extra
Protection from Leaks over an Extended period of Time.
- Efficient,
Cost-Effective Cooling System
- Options
Support common coolants used in liquid cooling applications (i.e.,
Glycol/Water, Mineral Oil, Synthetic Oils, Electro cool)
- Simple,
Intuitive One-Handed Operation of Latch. Audible Click Signals Secure
Connection
- Instant
Visual Identification of Cooling Lines.
- Meets
size requirements for Space- Constrained Electronics
- Compatibility
with various tubing options including reinforced tubing.
Main Specifications:
- Material: Brass
- Material
Finish: Chrome
- Pressure
Range: Vacuum to 120 psi, 8.3 bar
- Color: Metallic with cool blue
- Mounting Option: In-Line
- Temperature
Range: 0°F - 240°F (-17°C - 115°C)
- Seal
Options: EPDM
- Valve
Spring: 302 Stainless Steel
- Valve
Option: Valved
- Body
Type: Inserts
- Shipping/Storage
Temperature Range: -40°F to 240°F (-40°C to 115°C)
- Spillage: <0.025 cc per disconnect at 0 psi and <0.055 cc per disconnect rated at 120 psi; Inclusion <0.025 cc per connect
- Bag
Qty: 10
|

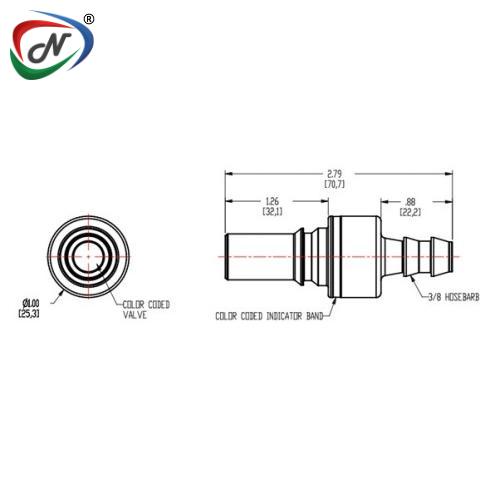

TERMINATION |
IN-LINE LOCKING HOSE BARB |
|
TUBING/THREAD SIZE |
3/8" ID |
|
METRIC EQ |
9.5mm ID |
|
SHUTOFF |
LQ6D22006LBLU |
|
A(Height/Diameter) |
1.0 (25.3) |
|
B (Total
Length) |
2.79 (70.7) |
|
C(Connected length) |
0.65 (16.4) |
*All measurements are in inches (millimetres) unless
otherwise noted.
Click to download : CPC-Everis-LQ6-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP006476 |
| Manufacturer Code | LQ6D22006LBLU |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
