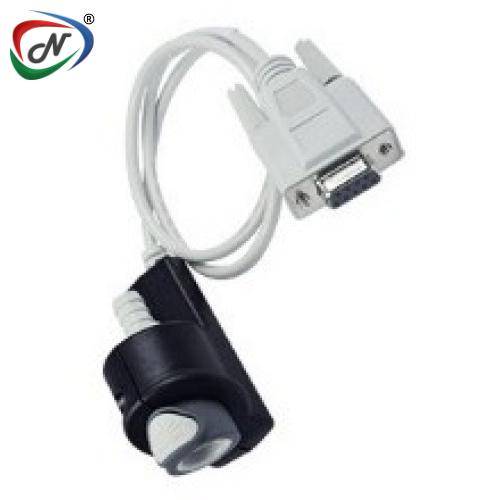

INS4DR1700600 3/8 Hose Barb Valved In-Line Coupling Reader with RFID, RS-232
#NSSP005722
Product Description
INS4DR1700600 3/8 Hose Barb Valved In-Line Coupling Reader with RFID, RS-232
Main Specifications:
- Material: Polypropylene
- Material Finish: Natural
- Color: Gray
- Mounting Option: Free Floating
- Temperature Range: 32°F - 160°F (0°C - 71°C)
- Seal Options: EPDM
- Valve Spring: 316 Stainless Steel
- Valve Option: Valved
- Body Type: Other
- Bag Qty: 1
Main Features:
- Non-spill design
- Color coding
- Glass-filled polypropylene
Main Benefits:
- Disconnect under pressure
with no spills
- Instant visual
differentiation of media lines
- Durable and compatible with many chemicals
COUPLING BODY
TERMINATION | IN-LINE HOSE BARB (RS-232 INTERFACE) |
TUBING/THREAD SIZE | 3/8" ID |
METRIC EQ. | 9.5mm ID |
POLYPROPYLENE SHUTOFF | INS4DR1700600 |
A(Height/Diameter) | 2.15 (54.6) |
B (Total Length) | 3.49 (88.6) |
*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters.
COUPLING READER
TERMINATION | IN-LINE HOSE BARB (RS-232 INTERFACE) |
TUBING/THREAD SIZE | 3/8" ID |
METRIC EQ. | 9.5mm |
SHUTOFF | INS4DR1700600 |
A(Height/Diameter) | 2.15 (54.6) |
B (Total Length) | 3.49 (88.6) |
Click to download : CPC-NS4-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP005722 |
| Manufacturer Code | INS4DR1700600 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
