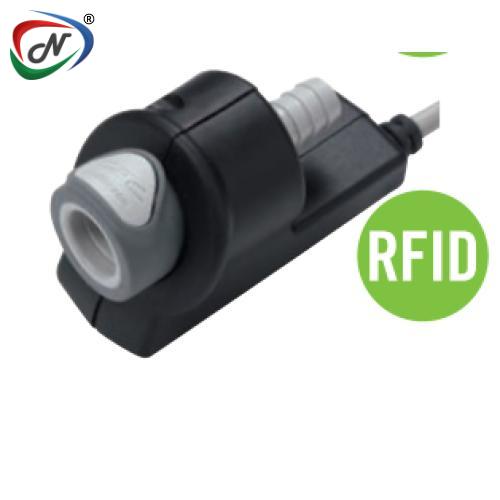

INS4DR1700601 3/8 Hose Barb Valved In-Line IdentiQuik Coupling Reader with RFID, USB
#NSSP005723
Product Description
INS4DR1700601
3/8 Hose Barb Valved In-Line IdentiQuik Coupling Reader with RFID, USB
Main Features:
- Data exchange using RFID (Radio Frequency Identification)
- Smart Couplings
- “CPC Click”
- Available in CPC’s PLC12, NS4, SMC, UDC series couplings.
Main Benefits:
- Brand protection, fluid tracking and extended equipment life.
- Prevent misconnections
- Audible confirmation of connection
- Suitable for a wide variety of materials and flow sizes
Main Specifications:
- Material: Polypropylene
- Material Finish: Black/Grey
- Color: Black/Grey
- Mounting Option: Free Floating
- Temperature Range: 32°F - 160°F (0°C - 71°C)
- Seal Options: EPDM
- Valve Spring: 316 Stainless Steel
- Valve Option: Valved
- Body Type: Other
- Bag Qty: 25
COUPLING BODIES- Polypropylene
TERMINATION | IN-LINE HOSE BARB |
TUBING/THREAD SIZE | 1/2" ID |
METRIC EQ. | 12.7mm ID |
POLYPROPYLENE SHUTOFF | iNS4DR1700601 |
A (Height/Diameter) | 2.15 (54.6) |
B (Total Length) | 3.4 (86.4) |
COUPLING READERS - Polypropylene
TERMINATION | IN-LINE HOSE BARB (USB INTERFACE) |
TUBING/THREAD SIZE | 3/8" ID |
METRIC EQ. | 12.7mm ID |
SHUTOFF | iNS4DR1700601 |
A (Height/Diameter) | 2.15 (54.6) |
B (Total Length) | 3.4 (86.4) |
WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
Note: Image is just for ref.
Medical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP005723 |
| Manufacturer Code | INS4DR1700601 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
