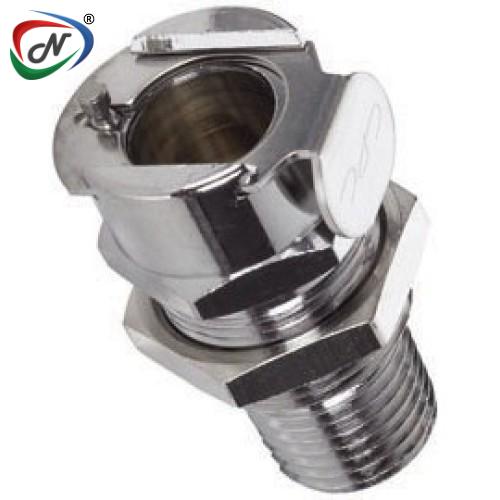

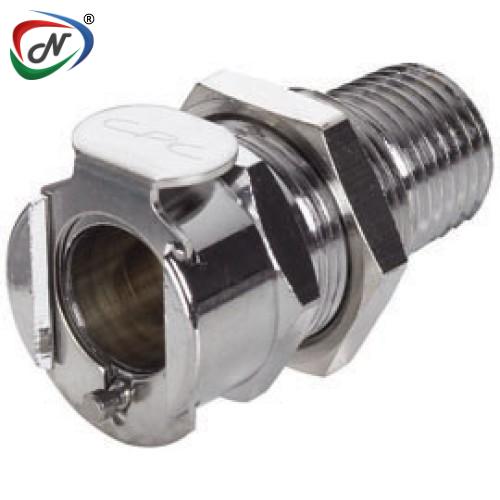

LC15004 1/4 NPT Non-Valved Panel Mount Chrome-plated Brass Coupling Body
#NSSP005783
Product Description
LC15004 1/4 NPT Non-Valved Panel Mount Chrome-plated Brass Coupling Body
Main Features:
- Brass Material
- Chrome Plating High Temperature
- Capability
- Compatible
Main Benefits:
- Durable & able to withstand higher pressure & temperature
- Attractive Appearance
- Versions rated to 400* F (240* C)
- Mates with PLC and PLC12 Series Coupling
Main Specifications:
- Material: Brass
- Material Finish: Chrome
- Pressure Range: Vacuum to 250 psi, 17.3 bar
- Color: Chrome
- Mounting Option: Panel Mount
- Temperature Range: -40°F - 180°F (-40°C - 82°C)
- Valve Option: Non-Valved
- Body Type: Body
- Weight: .1055 Ounce
- Bag Qty: 10
TERMINATION | PANEL MOUNT MALE THREAD |
TUBING/THREAD SIZE | 1/4" NPT |
STRAIGHT THRU | LC15004 |
SHUTOFF | LCD15004 |
A (Height/ Diameter) | 0.88(22.9) |
B (Total Length) | 1.5 (38.1) |
All measurements are in inches (millimeters) unless otherwise noted.
Click to download : CPC LC Series Specification sheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP005783 |
| Manufacturer Code | LC15004 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
