MCD21025 - 5/32 PTF Valved Elbow Chrome Plated Brass Coupling Insert

#NSSP003287

Product Description

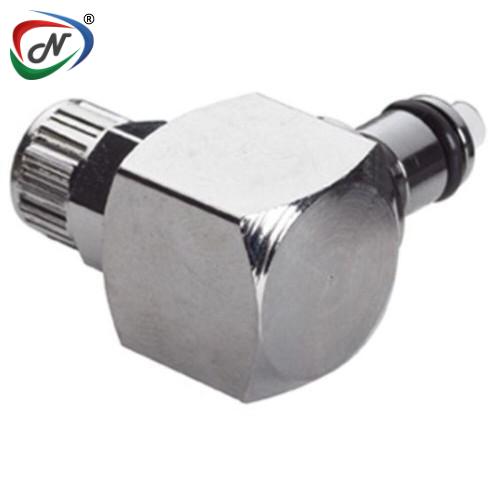

MCD21025 - 5/32 PTF Valved Elbow Chrome Plated Brass Coupling Insert

Specifications:

Material: Brass

Material Finish: Chrome

Color: Chrome

Valve Option: Non-Valved

Mounting Option: Free Floating

Pressure Range: Vacuum to 250 psi, 17.3 bar
Temperature Range: -40°F - 180°F (-40°C - 82°C)

Seal Options: BUNA-N
Valve Spring: 316 Stainless Steel
Body Type: Insert
Bag Qty: 10

COUPLING INSERT – Chrome-Plated Brass

TERMINATION	ELBOW FERRULELESS POLYTUBE FITTING, PTF†
TUBING/THREAD SIZE	5/32" OD, 0.10" ID
METRIC EQ	4.0mm OD, 2.5mm ID
STRAIGHT THRU	MC21025
SHUTOFF	MCD21025

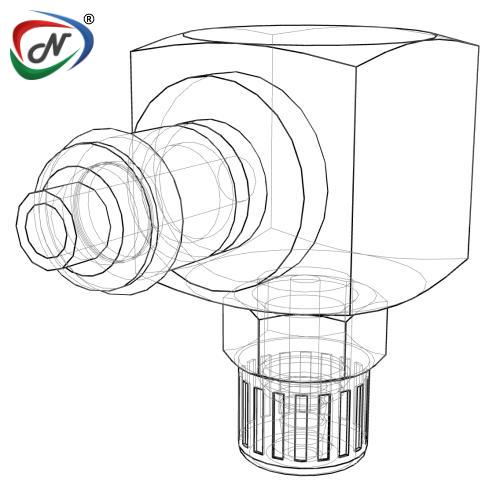

A (Height/Diameter)	0.63 (16.0)
B (Total Length)	1.18/1.28 (30.0/32.5)
C (Hose Barb Length)	0.81 (20.6)

*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters. Couplings are pictured with valves unless otherwise noted.

†NOTE: CPC's Ferruleless Polytube Fitting terminations do not require ferrules to achieve a secure connection, which makes them easier to use and reuse. PTF fittings are designed for semi-rigid tubing, i.e., polyethylene, nylon, polyurethane, etc.

WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.

Note: Image is just for ref.
