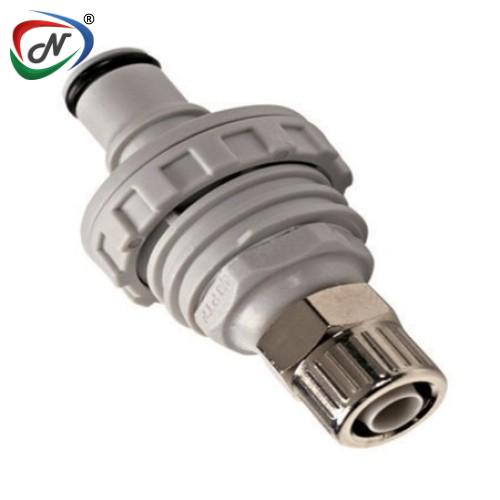

NS4D40006 3/8 PTF Valved Panel Mount Molded Grey Polypropylene Coupling Insert
#NSSP007095
Product Description
NS4D40006 3/8 PTF Valved Panel Mount Molded Grey Polypropylene Coupling Insert
Main Features:
- Non-Spill
Design
- Colour
Coding
- Glass
-Fitted Polypropylene
Main Benefits:
- Disconnect
under pressure with no spills
- Instant
visual differentiation of media lines
- Durable
& Compatible with many chemicals.
Main Specifications:
- Material: Polypropylene
- Material
Finish: Molded Grey
- Pressure
Range: Vacuum to 120 psi, 8.3 bar
- Color: Grey
with dark grey overmold
- Mounting Option: Panel Mount
- Temperature
Range: 32°F - 160°F (0°C - 71°C)
- Seal
Options: EPDM
- Valve
Spring: 316 Stainless Steel
- Valve
Option: Valved
- Body
Type: Inserts
- Spillage: <0.10
cc per disconnect, 0.10cc per connect
- Bag
Qty: 25
|
TERMINATION |
PANEL MOUNT FERRULESS POLYTUBE FITTING, PTF |
|
TUBING/THREAD SIZE |
3/8" OD,
1/4" ID |
|
METRIC EQ. |
9.5mm OD,
6.4mm ID |
|
POLYPROPYLENE
SHUTOFF |
NS4D40006 |
|
A(Height/Diameter) |
1.17 (29.7) |
|
B (Total Length) |
2.3 (58.4) |
*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters.
Note: Image is just for ref.
Click to download : CPC-NS4-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP007095 |
| Manufacturer Code | NS4D40006 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
