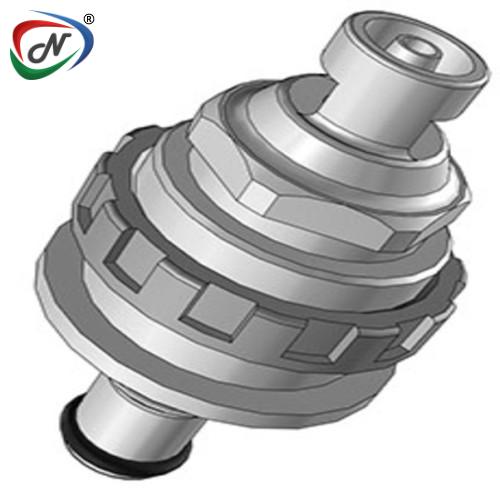

NS4D42002 1/8 Hose Barb Valved Panel Mount Molded Grey Polypropylene Coupling Insert
#NSSP007094
Product Description
NS4D42002 1/8 Hose Barb Valved Panel Mount Molded Grey Polypropylene Coupling Insert
Main Features:
- Non-Spill Design
- Colour Coding
- Glass -Fitted Polypropylene
Main Benefits:
- Disconnect under pressure with no spills
- Instant visual differentiation of media lines
- Durable & Compatible with many chemicals.
Main Specifications:
- Material: Polypropylene
- Material Finish: Molded Grey
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Color: Gray with dark gray overmold
- Mounting Option: Panel Mount
- Temperature Range: 32°F - 160°F (0°C - 71°C)
- Seal Options: EPDM
- Valve Spring: 316 Stainless Steel
- Valve Option: Valved
- Body Type: Inserts
- Spillage: <0.10 cc per disconnect, 0.10cc per connect
- Bag Qty: 25
TERMINATION | PANEL MOUNT HOSE BARB |
TUBING/THREAD SIZE | 1/8" ID* |
METRIC EQ. | 3.2mm ID* |
ABS SHUTOFF | NS4D4200406 |
POLYPROPYLENE SHUTOFF | NS4D42002 |
A(Height/Diameter) | 1.17 (29.7) |
B (Total Length) | 2.07 (52.6) |
*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters.
*NOTE: 1/8" ID (3.2mm) hose barb connection has a support shroud allowing a maximum tube OD of 1/4" (6.4mm).
Click to download : CPC-NS4-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP007094 |
| Manufacturer Code | NS4D42002 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
