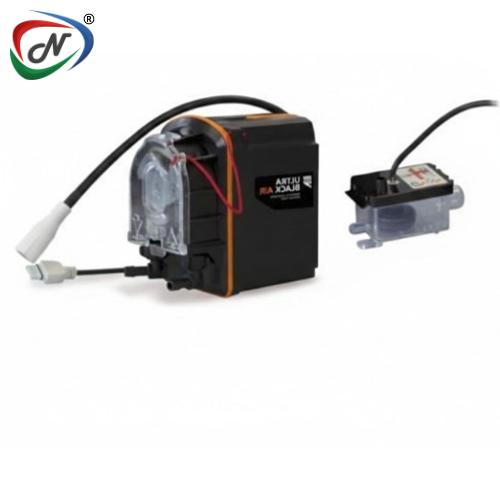

FP3390 Aspen Ultra Black Air Peristaltic Pump
#NESPLASPENPUMP1
Product Description
FP3390 Aspen Ultra Black Air Peristaltic Pump
The Aspen Ultra Black Air peristaltic pump is a
high‑performance condensate removal pump featuring user‑programmable stepper‑motor
speed control to reduce noise and tube wear. It delivers up to 15 L/h flow with a 12 m lift,
operates quietly at about 21 dB(A), and supports flexible
installation in HVAC systems.
Main Features:
- User‑programmable motor
speed to reduce noise and tube wear.
- Ultra‑quiet operation (~21 dB(A)),
ideal for noise‑sensitive locations.
- High performance with up to
15 L/h
flow and 12 m
lift capacity.
- Easy, flexible installation
with patented mounting and temperature‑sensor trigger.
Main Specifications:
- Data Based: @
110-230 VAC 50/60Hz
- Max. flow: 15L/h @ 12m head
- Max. rec. head: 12m
- Max. suction lift: 3m
- dB (a): 21
- Power supply: 110-230
VAC, 0.2A, 50/60Hz
- Rated: Continuously
- Class: ll appliance
- Max. unit output: 20kW
/ 68,000 Btu/h
- Max. water temp: 40°C
/ 104°F
- Inlets: 6mm ID
- Outlets: 6mm ID
- IP Protection: IP24
- Safety switch: 5A
NC relay
- Self-priming: ✓
In the Box:
- Peristaltic
pump
- 3m
Plug & Play power / sensor cable
- Wall
mounted bracket
- Fixing
kit
- Installation manual
Click to download : FP3390-FP3391-MAN-EN-FR MANUAL
REFRIGERATION / HVAC INDUSTRY
Additional Information
| NESPL Code | NESPLASPENPUMP1 |
| Manufacturer Code | FP3390 |
| Manufacturer | ASPEN |
| Type | Pump |
