Sauermann Si-61 SI61CE02UN23 Piston Condensate Tank Pumps
#NESPLSAUERMANNPUMP13
Product Description

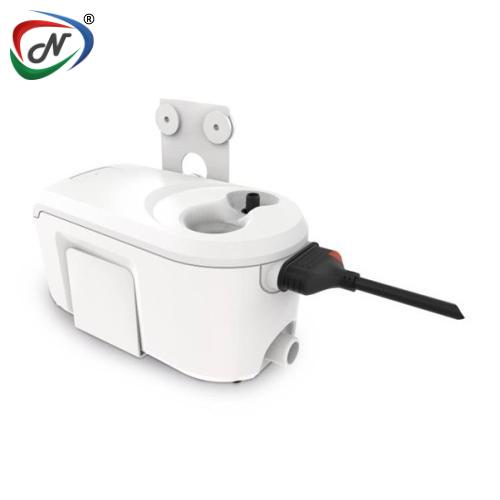

Sauermann Si-61 SI61CE02UN23 Piston Condensate Tank Pumps
The Si-61 is a piston pump in neutral color, ideal
for living spaces, with built-in tank (0,37 l) designed to remove acidic
condensates from gas condensing boilers
up to 50 kW. The Sauermann® technology inside the pump enables small particles
removal.
Together with innovative float, this technology makes the
pump fully reliable in a condensing boiler environment.
White color, small size and low noise level make the Si-61
ideal for an installation in a kitchen.
Main Features:
- Patented Technology
- Resistant to pollution
- Easy to install
- Adapted to living spaces
Main Specifications:
- Max flow rate: 2.64 gph 10 l/h
- Max discharge head: 13 ft 4 m
- Max pressure: 26 feet 8 m
- Insulation class: Double insulation
- Mains supply: 230 V~ 50/60 Hz - 10W
- Operation conditions: 100% continuous duty
- Protection: IPX4
- Color: White
- Master pack quantity: 5
- Safety switch: NC 3 A resistive load – 250 V
- Detection: ON: 28 mm / OFF: 24 mm / Safety: 35 mm
Kit Contains:
- 1 Piston pump with 0,37 l tank
- 1 Integrated float detection unit
- 1 1.5 m power plug-in power cable
- 2 Power wires
- 2 Safety contact wires
- 1 Inlet rubber adapter Ø int. 15-20-24-32- 40 mm (Ø int.
5/8’’-3/4’’-1’’-1’’¼-1’’½)
- 1 5 m of tubing (Ø int. 6 mm - 1/4’’)
- 1 Drain safe Device
- 1 Self-sealing discharge fitting
- 4 Double wire spring clips
- 2 screws
- 2 plugs
Note: Sauermann products meet CE, UKCA, EAC, ISO
9001, REACH, RoHS, and TSCA certification requirements.
Click to download : DS_SAUERMANN_SI61CE02UN23_DATA SHEET
REFRIGERATION / HVAC INDUSTRY
Additional Information
| NESPL Code | NESPLSAUERMANNPUMP13 |
| Manufacturer Code | SI61CE02UN23 |
| Manufacturer | Sauermann |
| Type | Pump |
