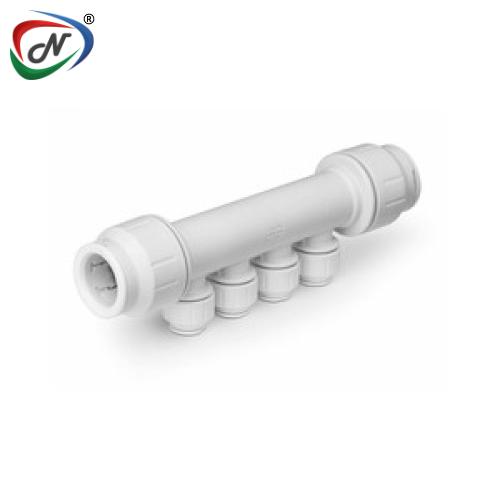

PEM522210W JG Speedfit 4 Port Manifold 22 × 10mm

#NSSP007835

Product Description

PEM522210W JG Speedfit 4 Port Manifold 22 × 10mm

JG Speedfit plastic plumbing push-fit manifolds are a durable solution that enables service pipework to be quickly and easily centralised at a single point.
Made from polybutylene, the manifolds have a straight-through design and push-fit Twist & Lock® connections on all inlets and outlets, for fast and simple installation. Alternatively, there is an option with a stem connection on the main inlet that allows for additional plastic manifolds to be securely connected.
Simply push the push-fit fitting fully onto the pipe and twist the plastic nut clockwise to lock in place. To demount the connection, unlock the nut by hand and push the collet towards the body of the push-fit fitting and pull the pipe to release.

Features and benefits

Durable polybutylene manifolds
Instant push-fit connections with an additional option that includes a stem type connection for installation flexibility
Install and demount in seconds without tools
Safe flame-free installation, with no hot works, glue or flux
Up to 40% cost-saving compared to alternative methods that includes a series of pipes, elbows and tees, which makes installation longer and more complex
Grip & Seal collet with stainless steel teeth and main O-Ring seal
Twist & Lock mechanism secures fitting and adds compression
Non-toxic, resists corrosion and no scale build-up
Compatible with Speedfit PEX and polybutylene plastic pipe (inserts required) and copper pipe
Suitable for hot and cold water and central heating systems

Main Specifications:

SKU	Description	Size mm	Stem Size mm	Inlet Size mm	Outlet Size mm	Quantity per bag	Accreditations
PEM522210W	JG Speedfit 4 Port Manifold 22 × 10mm	22	22	22	10	4	BSI WRAS
PEM522210WP	JG Speedfit 4 Port Manifold 22 × 10mm	22	–	22	10	1	BSI WRAS
PEM522215W	JG Speedfit 4 Port Manifold 22 × 15mm	22	–	22	15	4	BSI WRAS
PEM522215WP	JG Speedfit 4 Port Manifold 22 × 15mm	22	–	22	15	1	BSI WRAS
