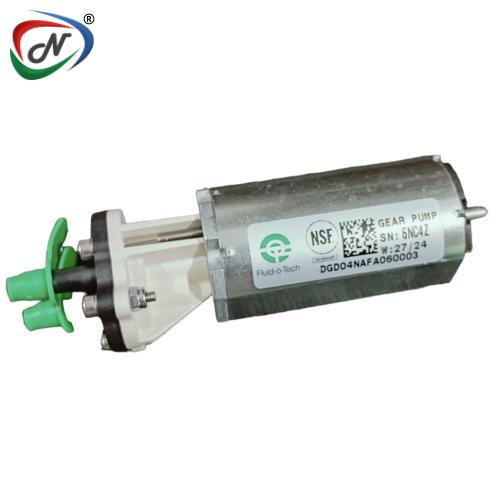

DGD04NAFA060003 DGD04 GEAR PUMP

#NSSP004142

Product Description

DGD04NAFA060003 DGD04 GEAR PUMP

The DGD series direct drive gear pump-motor units are designed to manage clean and moderately viscous fluids, operating at a maximum temperature of 70 °C (158 °F) and capable of withstanding pressures up to 4 bar (58 psi) with flow rates reaching 160 l/h (42 GPH). The pump housing can be constructed from either stainless steel or Vectra, while the gears are manufactured from Vectra. Seals are offered in NBR, EPDM, or Viton materials. The suction and discharge ports feature an 8 mm barbed end. The pump drives are available in 12V or 24V brush DC configurations, with various nominal speeds and power options suitable for intermittent duty applications. Its compact design makes it an ideal choice for environments with limited space. Additionalities certified pumps for potable water or fluids intended for human consumption are also offered.

MAIN APPLICATIONS:

WATER PURIFICATION

LASER COOLING

SPRAYING

WATER RECIRCULATION

CONDENSATION REMOVAL

SYRUP DISPENSING

VENDING MACHINES

FOOD PROCESSING

DIGITAL MACRO PRINTING

Main Specifications:

	Technology	Flow Rate (Min)	Flow Rate (Max)	Differential Pressure (Max)	Static Pressure (Max)
DGD SERIES PUMP-MOTOR UNIT	External gear pumps	40 l/h	160 l/h	4 bar	6 bar
