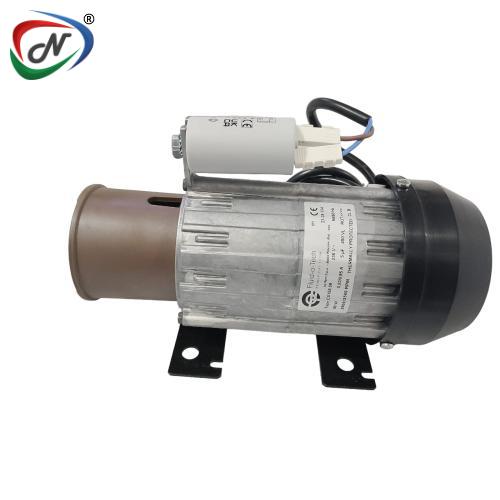

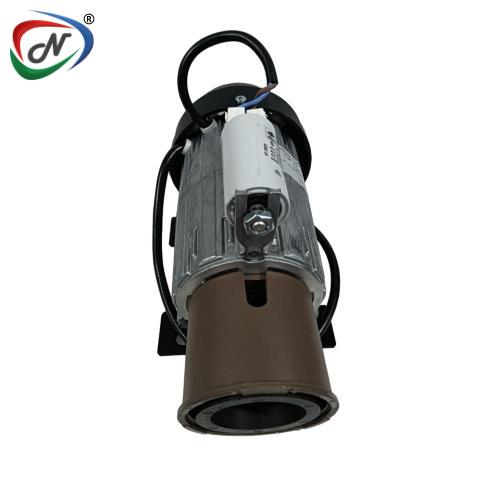

TMCF07S Group Motor

#NSSP002134

Product Description

TMCF01-07S Magnetic drive Rotary Vane Pumps

RPM C0155.09-90W vent.(6901428)

DRIVER UNIT FOR ROTARY VANE PUMPS TM Series

RPM 230V 50/60 Hz 90W 2P FAN COOLED

MAIN APPLICATIONS

ESPRESSO COFFEE MACHINES

SODA CIRCULATION

REVERSE OSMOSIS

SOLAR HEATING SYSTEMS

COOLING SYSTEMS

REFRIGERATING GAS TRANSFER

COMPARED TO CONVENTIONAL COUPLING, THE MAGNET DRIVE HAS SEVERAL ADVANTAGES:

LONGER SERVICE LIFE

NO LEAKS OR CONTAMINATION

NOISELESS OPERATION

NO CONTACT BETWEEN PUMP AND MOTOR SHAFT

HIGHER EFFICENCY
MAX SYSTEM PRESSURE: 18 BAR (260 PSI)
MAX TEMPERATURE: 70 °C (158 F)

Main Specifications:

	TECHNOLOGY	FLOW RATE(MIN)	FLOW RATE (MAX)	DIFFERENTIAL PRESSURE(MAX)	STATIC PRESSURE(MAX)
TMCF01-07S SERIES DRIVES	Rotary vane pump	100 l/h	500 l/h	14 bar	20 bar
