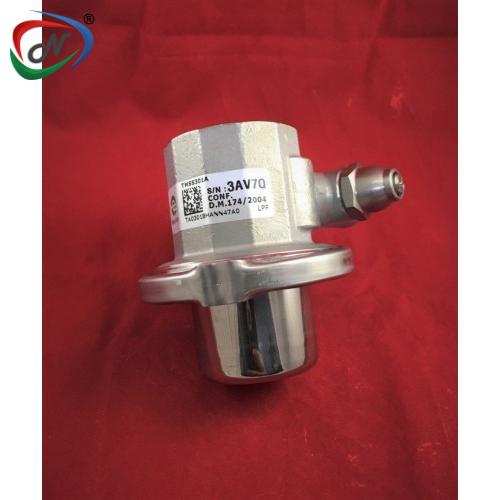

TA0301BHANN47A0 - TMSS301A mag drive rotary vane pump

#NSSP002988

Product Description

TA0301BHANN47A0 - TMSS301A mag drive rotary vane pump TM series.

S.S housing clamp mount 300 l/h 1450

rpm 3/8"NPT ports NSF shaft I 8.5, NBR seals

The TM 300-400 series of positive displacement rotary vane pumps are offered with stainless steel casings, featuring 3/8” GAS or NPT ports and an internal relief valve. The nominal flow rates for these pumps range from 300 to 480 liters per hour at a speed of 1450 rpm. They can be operated at speeds of up to 1725 rpm, delivering flow rates that are proportional to the speed, with a maximum output of 560 liters per hour (150 GPH). The discharge pressure of the pump can reach a maximum of 18 bar (260 psi). Additionally, the seal-less magnetic coupling to the motor enhances reliability and extends the service life. This series can be directly mounted to commonly available M56, M63 IEC, or NEMA 56C frame motors using an adapter.

Main Applications:

Carbonation & Beverage
Espresso/Coffee
Welding
Beer Chillers & Cold Carb Circulation
Reverse Osmosis
Medical Devices & Application
Solar Applications
Cooling Systems
Circulation
Pesticide Systems
X-Ray & CT Scanner
Misting & Humidification Systems
Soda Machines
Laser machines

Main Features:

Self priming

Quiet operation

Seal-less magnetic coupling

Pulsation free flow

Internal relief valve available

Flow rate proportional to motor speed

Mounts to NEMA 56C motors

Long service life

NSF and WRAS listed
Main Specifications:

	Technology	Flow Rate (Min)	Flow Rate (Max)	Differential Pressure (Max)	Static Pressure (Max)
TM 300-400 SERIES VANE PUMPS	Rotary vane pumps	360 l/h	550 l/h	18 bar	20 bar
