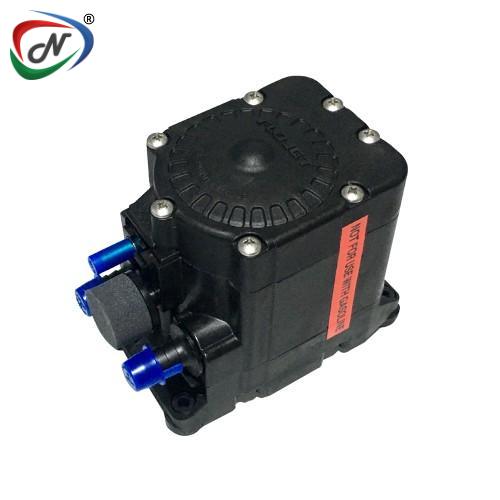

G575205A Air Operated Diaphragm Pump
#NSSP002941
Product Description
FLOJET G575205A AIR DRIVEN DIAPHRAGM PUMP
Santoprene Diaphragm and Valves, EPDM 'O' Rings
Main DESCRIPTION:
AIR SUPPLY PRESSURE
- 20 – 100 (PSI) 1.4 – 6.9 (BAR)
TEMPERATURE RANGE
- 120 (°F) 48.9 (°C)
SELF-PRIMING
- UP TO 15FT (4.5M)
PORT(S) GAS INLET & OUTLET
- 1.4" (6.3MM)
WEIGHT
- 0.54 (KG)
PORT TYPE
- 3/8" HOSE BARB
AIR FITTING
- 1/4" BRASS HOSE BARB
DIAPHRAGM
- SANTOPRENE
MAIN FEATURES:
- Connections: - Fluid, 9.5mm (3/8") hose - Air, 6mm (1/4") hose
- Dimensions: - 116mm long, 82mm wide, 115mm high
- Output: - up to 26.5 litres/minute (5.9 gallons/minute). Maximum pressure 6.9bar (100psi)
- Capable of passing solids up to 3.2mm diameter
- Corrosion Resistant Sanitary Design
- Self-priming up to 4.5m
- Pump can run-dry and handle liquids up to 49ºC (120ºF)
- Max. Air Supply Pressure 6.9bar (100psi)
- Packaged Dimensions: L:15.00 x H:15.00 x W:12.00cm
- Actual Weight: 0.68 Kg (Approx. 0.93 Kg packed)
*The details supplied here are for information only.
Click to download : G575205A Air Operated Diaphragm Pump Product Catalouge Click to download : Parts List Click to download : DatasheetVarious Industry Products
Additional Information
| NESPL Code | NSSP002941 |
| Manufacturer Code | G575205A |
| HSN Code | 84135090 |
| Manufacturer | FLOJET / XYLEM PUMPS |
| Weight | 0.54 (kg) |
| Type | Pump |
