12556646441 Reducing Elbow Hose Connector

#NESPLTEFEN25

Product Description

The Tefen 12556646441 Reducing Elbow Hose Connector is a 90° PVDF elbow fitting that connects a hose with 6mm ID to one with 4mm ID. It boasts a compact length of 35.5mm (L) and 29.0 mm (L1). Rated for up to 14 bars (200psi) at 20°C and usable in temperatures from –20°C to +120°C. Designed for highly chemical resistant, tight space fluid routing in advanced industrial systems.

Main Features:

Reducing hose barb design – Connects a 6mm hose ID to a 4mm hose ID for size transition in-line.
Elbow configuration – 90° angle for compact routing in tight spaces and efficient directional change.
High-performance PVDF material – Excellent chemical resistance, thermal stability, and durability (white colour typical).
Strong pressure and temperature ratings – Up to ~14bar (200psi) at 20°C; usable from –20°C to +120°C.

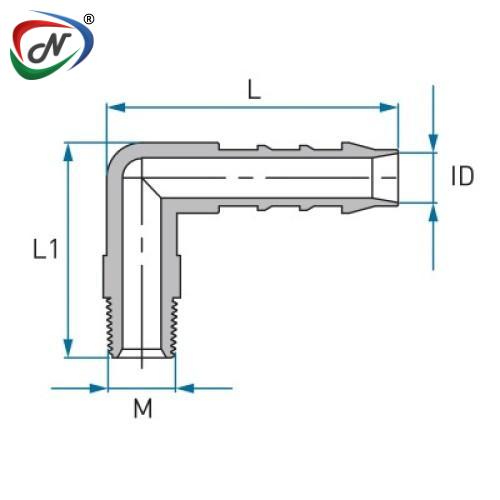

Compact dimensions – Length of ~35.5 mm (L) and ~29.0 mm (L1) for the 64 mm size, enabling space conscious installation.

Main Specifications:

Unit type	Metric
Material	PVDF
Color	White
L mm	35.5
L1 mm	29
Tube ID mm	6
Tube ID1 mm	4
Inner Diameter	6
Inner Diameter1	4
Temperature Range	-20°C up to +120°C
Working Pressure	Up to 14 bar (200 psi) at +20° C
