22006544002 Union Elbow

#NESPLTEFEN13

Product Description

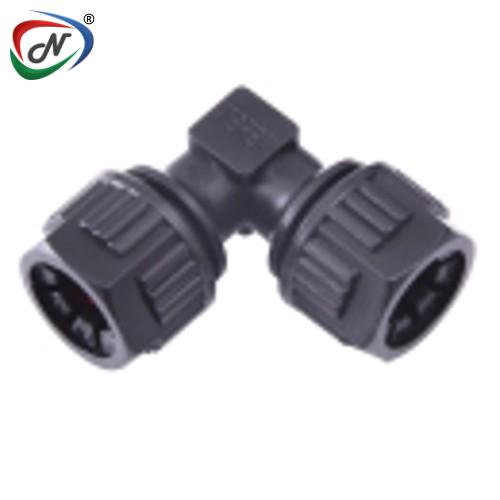

22006544002 Union Elbow

The Tefen Union Elbow Connector (model 22006544002) is a fiberglass-reinforced polypropylene push-on fitting that connects two co-axial tubes at a 90° angle. It employs a nut and barb push-on seal design—no O-rings required—and offers excellent chemical resistance and pull-out strength. Designed for pneumatic and hydraulic applications, it operates at pressures up to 14-bar (200psi) at 20°C and handles temperatures from 0°C to 90°C.

Main Features:

90° Elbow Design – Connects two tubes at a right angle for space-efficient routing.

Push-On Nut & Barb System – Ensures a secure, leak-free connection without O-rings.

Fiberglass-Reinforced Polypropylene – Offers excellent strength and chemical resistance.

Main Specifications:

Cat. No.	Tube OD mm	Color
22006544002	4	Black
22006546002	6
22006548002	8
22006550002	10
22006552002	12
Cat. No.	Tube OD mm	Color
22006503002	3/16"	Black
22006504002	1/4"
22006505002	5/16"
22006506002	3/8"
22006508002	1/2"
