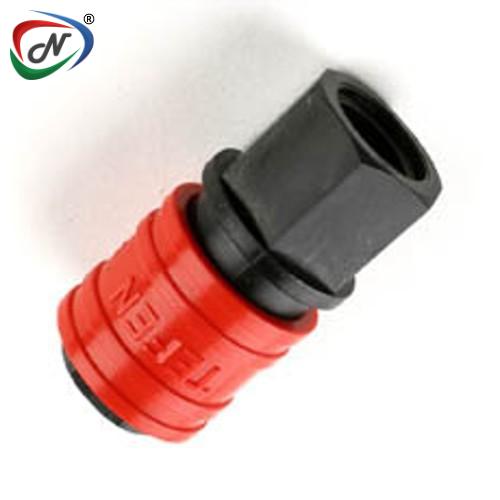

22081104102 Quick Release Socket

#NESPLTEFEN34

Product Description

The 22081104102 Quick Release Socket is a high-performance, push-to-connect fitting from Tefen. Made of acetal, it features a BSPP 1/4 thread and a red outer sleeve that locks in the plug securely. When disconnected, an internal check valve prevents leaks. The socket supports up to 14 bar (200 psi) at 20°C and works reliably between +4°C and +90°C. Key sealing uses EPDM O-ring, and internal springs are SS 316.

Main Features:

Acetal body — lightweight yet strong and corrosion-resistant.
BSPP 1/4 threaded connection — compatible with standard piping.
Red quick release sleeve — enables fast, tool-free disconnection.
Internal check valve — prevents leaks when disconnected.
High pressure and temperature rating — up to 14 bar (200 psi) and +4°C to +90°C.

Main Specifications:

Material	Acetal
Thread Type	BSPP
Color	Red
Temperature Range	+4° C up to +90° C (+40° F up to +195° F)
Working Pressure	Up to 14 bar (200 psi) at +20° C

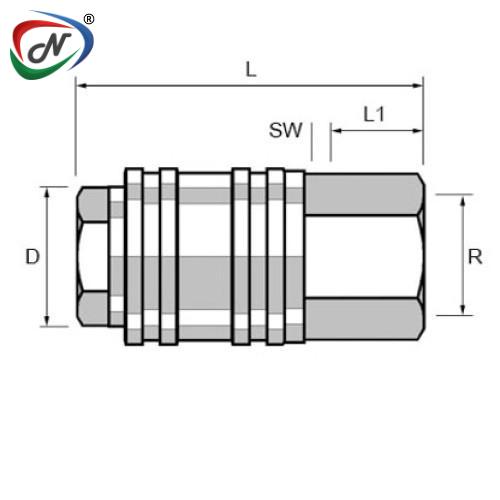

D mm	22
L mm	44
F BSPP	1/4"
SW mm	18
O Ring Material	EPDM
Springs	SS 316
