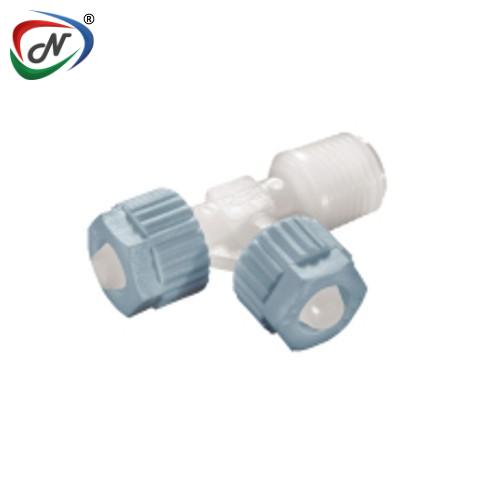

22257208021 NPT Male Barb Block Run T

#NESPLTEFEN18

Product Description

This part is a T-shaped barb-block fitting with a ½ tube outer-diameter barb and a 1/8 male NPT thread. It’s manufactured in PVDF material for high chemical and thermal resistance. The working pressure is up to 14 bar (200 psi) at 20 °C, and it supports temperatures from -20 °C to +120 °C. Ideal for branching fluid lines in harsh environments.

Main Features:

Material: Made from PVDF for excellent resistance to chemicals and high temperatures.

Connection Type: Features ½ barb connections with a 1/8 male NPT threaded port.

Design: T-shaped run configuration for efficient fluid line branching.

Pressure Rating: Supports up to 14 bar (200 psi) at 20 °C for durable performance.

Temperature Range: Operates effectively between –20 °C and +120 °C.

Specifications:

Unit type	Imperial
Material	PVDF
Thread Type	NPT
Color	White & Grey
Temperature Range	-20°C up to +120°C
Working Pressure	Up to 14 bar (200 psi) at +20° C
D	21.5 mm
d small	12 mm
Carton Quantity	250Main
L mm	48
L1 mm	43.2
Tube OD inch	1/2
M NPT	1/8
