22056546001 Union Elbow Barb Block Connector
#NESPLTEFEN5
Product Description

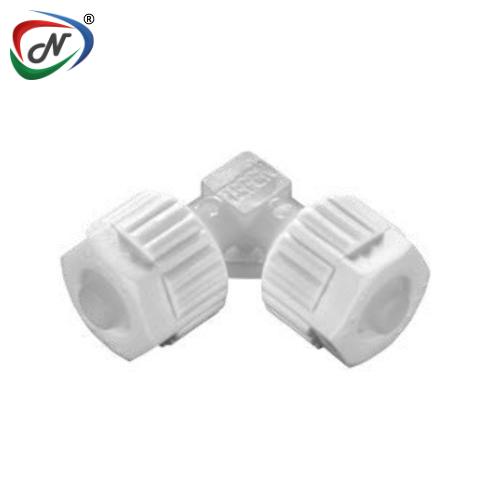

22056546001 Union Elbow Barb Block Connector
A Union Elbow Barb Block Connector is a right-angle fitting
designed to connect two flexible hoses using barbed ends for a secure grip. The
union feature allows easy disassembly without cutting the hose, while the elbow
design helps route tubing in tight spaces. Made from durable,
chemical-resistant materials like polypropylene or nylon, it offers reliable
sealing and long-lasting performance. Commonly used in fluid handling,
irrigation, and pneumatic systems where angled connections and serviceability are
needed.
Main Features:
- 90°
Elbow Design – Ideal for tight spaces, redirecting hose flow at a
right angle.
- Barbed
Ends – Securely grip flexible tubing without the need for clamps in
low-pressure systems.
- Union
Connection – Allows quick disassembly for maintenance or replacement
without cutting hoses.
- Chemical-Resistant
Materials – Often made from polypropylene or nylon for durability and
fluid compatibility.
- Leak-Resistant Seal – Provides a tight, reliable connection for air, water, or fluid lines.
Main Specifications:
|
Cat. No. |
Tube OD mm |
L mm |
Color |
|
22056546001 |
6 |
27.4 |
|
|
22056548001 |
8 |
27.4 |
White |
|
22056552001 |
12 |
40.5 |
|
|
Cat. No. |
Tube OD inch |
L mm |
Color |
|
22256504001 |
1/4" |
27.4 |
White & Navy Blue |
|
22256505001 |
5/16" |
27.4 |
|
|
22256508001 |
1/2" |
40.5 |
|
Click to download : 22056546001 Union Elbow Barb Block Connector Catalogue Click to download : Full Range CatalogueVarious Industry Products
Additional Information
| NESPL Code | NESPLTEFEN5 |
| Manufacturer Code | 22056546001 |
| Manufacturer | TEFEN |
| Type | Fittings |
