EC5414E RESCUE® ECM Watt Motors
#NIDECNESPL34
Product Description

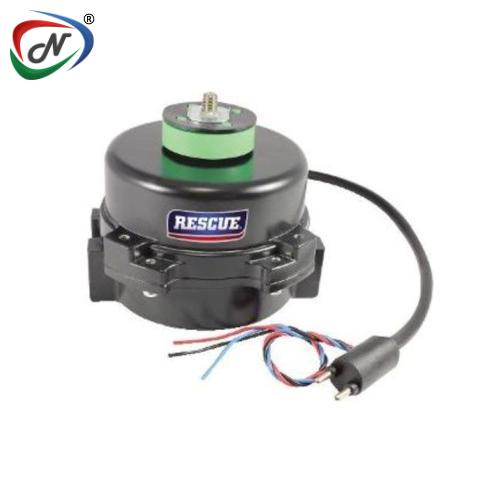

EC5414E RESCUE®
ECM Watt Motors Refrigeration Evaporator and Condensing Applications
The RESCUE®
ECM watt motor is designed to assist refrigeration contractors by accommodating
a variety of wattage and speed specifications, which helps to minimize
inventory requirements. It comes with adapters suitable for both single and
four-post fan hubs. The rear of the motor is equipped with holes that
facilitate compatibility with different OEM evaporator mounting brackets, as
well as two sets of mounting feet intended for condenser installation.
Additionally, the front of the motor includes four threaded holes that allow
for straightforward adaptation to Elco top-mount applications.
Main Features:
- IP67: Capable of being submerged in water
up to 30 minutes.
- Also IP65
and IP66 rated for
protection against a splash or spray of water.
- Suitable for use in Evaporator and Condenser
Applications.
- High
Efficiency up to 70%
- Universal
Mounting – Including
Elco top-mount.
- Standard
3 hole
style/Hussmann 4 hole on back of motor.
- Dual
Voltage: No
connection change required.
- Thermally
protected
- Robust Ball
Bearing System
- Aluminum
Frame
- Stainless
Steel Shaft, Shaft Size ¼-20 thread
- Operating
Temperature Range: -40°C to 55°C
- Meets ATEX
Directive 94/9/EC
Main
Specifications:
- Part
Number: EC5411E,
EC5412E, EC5414E
- Horsepower: 4 to 25 Watts
- Speed
Range: 1550 to 1725
RPM applications
- Rated
Voltages: 115V-230V
- Temperature
Rating: -40° C to
+55° C (-40° F to +130° F)
- Amps: 0.15 to 0.75
- Hertz: Rated 50/60 Hz
- Enclosure: Totally Enclosed Air Over (TEAO)
Click to download : PDS_RESCUE_ECM_Walk-in_Evaporator_MotorsVarious Industry Products
Additional Information
| NESPL Code | NIDECNESPL34 |
| Manufacturer Code | EC5414E |
| Manufacturer | Nidec |
| Type | Motors |
