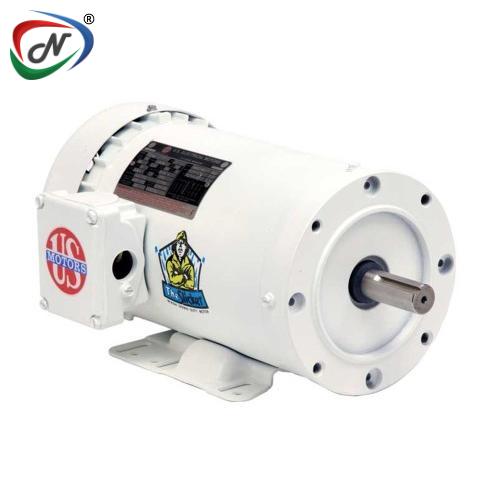

WD1C1JC Washdown Duty Painted US Motors (Nidec)
#NIDECNESPL16
Product Description
WD1C1JC Washdown Duty Painted US Motors (Nidec)
1HP, 3450RPM, 1PH, 115V;208V;230V, 56C Frame, C-Face Flange, Foot Mount, TEFC,
Main Specifications:
|
Manufacturer |
US Motors (Nidec) |
|
Part Number |
WD1C1JC |
|
HP |
1 |
|
Phase |
1 |
|
Frame |
56C |
|
Voltage |
110-120V, 208V, 230V |
|
Hertz |
60 |
|
Number of Speeds |
1 |
|
Speed (RPM) |
3450 |
|
Enclosure |
TEFC |
|
Mounting |
Foot Mount |
|
Drive End Flange Type |
C-Face |
|
Construction |
Rolled Steel |
|
Product Type |
Washdown Duty |
|
FL Amps |
13.6/6.9-6.8 |
|
FL Efficiency |
66.7 |
Click to download : Painted PDS_WASHDOWN Motor Click to download : Washdown_Motors Click to download : Washdown-3ph-TE-Painted Click to download : Washdown-1ph-Cface-PaintedVarious Industry Products
Additional Information
| NESPL Code | NIDECNESPL16 |
| Manufacturer Code | WD1C1JC |
| Manufacturer | Nidec |
| Type | Motors |
