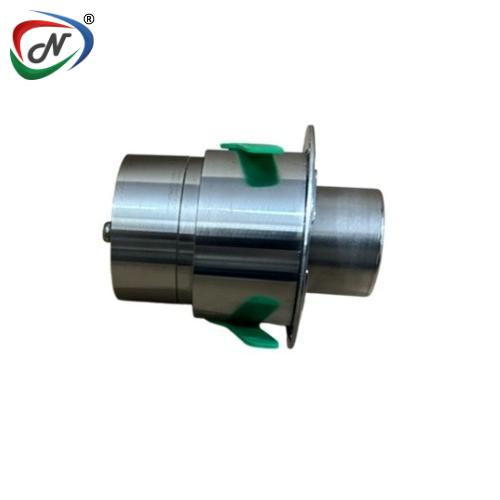

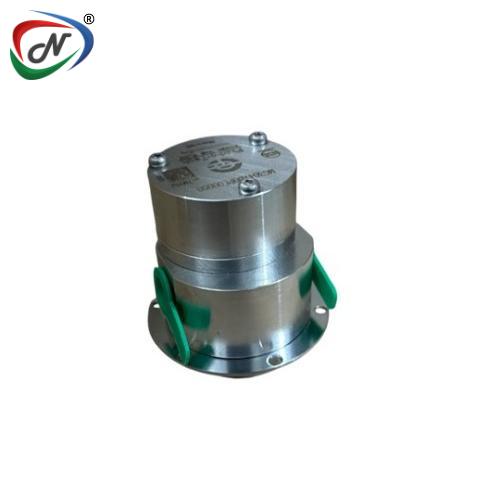

MG304XD0PE00000 Pump -MG300 with 4 mm Gears

#NSSP007708

MG304XD0PE00000 Pump -MG300 with 4 mm Gears, Elastomers in PEEK

The MG series magnet drive gear pumps are compact, precision-engineered pumps designed for high-tech applications.
The MG300 series is specifically crafted to ensure accurate and consistent delivery, irrespective of the fluid temperature.
The seal-less design, utilizing magnetic transmission for rotation, guarantees a leak-proof product. Static seals are offered in EPDM, NBR, PTFE™, Silicon, or Viton to ensure optimal chemical compatibility with a diverse array of fluids.
The housing of the gear pump and its internal metal components are constructed from AISI 316 L stainless steel, while the gears and bushings are made from PEEK™ or PTFE™. Additional materials, along with a variety of driving magnets, are also available.
NSF certified gear pumps suitable for potable water or fluids intended for human consumption are also offered. During operation, the MG300 series pumps operate quietly, free from pulsations, and can manage relatively high-temperature liquids up to 120 °C (248°F) with a low coefficient of expansion.
The pump is capable of delivering a flow range from 20 to 250 l/h (5 to 66 GPH) and can achieve pressures up to 15 bar (218 psi).

Main Features:

A blue circle with black text

AI-generated content may be incorrect.

Main Specifications:

	Technology	Flow Rate (Min)	Flow Rate (Max)	Differential Pressure (Max)	Differential Pressure (Max)
MG300 SERIES GEAR PUMPS	External gear pumps	20 l/h	250 l/h	15 bar	20 bar
