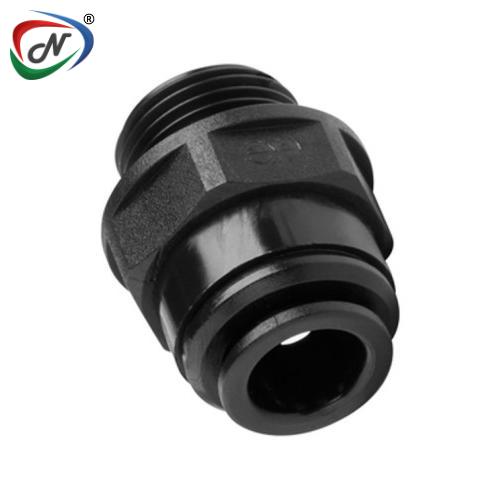

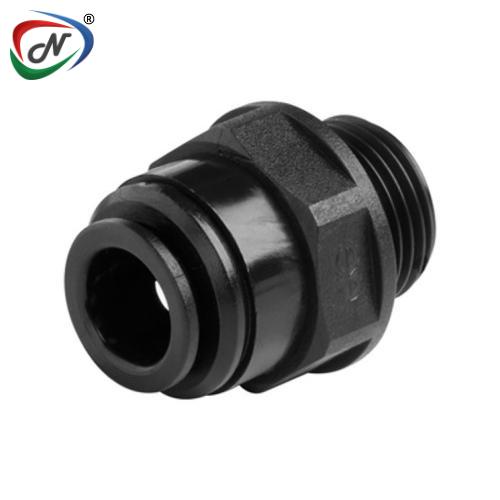

PM011516E Straight Adaptor (BSP thread) 15mm × 3/4''

#NSSP004848

Product Description

PM011516E Straight Adaptor (BSP thread) 15mm × 3/4"

Converts metric to a BSP type thread connection.

John Guest straight adaptor (BSP thread) push-fit fitting for the connection of metric pipe to a BSP type thread. Fast and simple to install, John Guest Air and Pneumatics creates an instant connection and airtight seal without the need for tools, hot works or sealing agents. Air piping systems can be set up and installed 50% quicker than traditional methods.

The unique collet locking design firmly and securely holds the pipe in place without deforming the pipe or restricting flow. Fittings are also fully demountable, reducing system downtime during maintenance and making it quick and easy to modify or extend systems.

Designed in tough engineered plastic, fittings are compatible with John Guest nylon, powder coated aluminium or LLDPE tubing, as well as copper, PEXa and other soft metal pipe materials. All John Guest fittings are manufactured and assembled in the UK.

Features and benefits

Strong acetal copolymer fitting with nitrile O-Ring
Airtight connection with superior flow characteristics
Instant push-fit connection and demountable without tools
Secure collet cover prevents accidental disconnection
Suitable for air and pneumatics piping systems up to 10 bar
Ideal for air, inert gases and vacuum applications
Food grade fitting suitable for potable liquids
Compatible with soft metal or plastic pipe/tubing

Main Specifications:

SKU	Description	Pipe OD mm	BSP "	Quantity per bag	Quantity per box	Accreditations
PM011213E	Straight Adaptor (BSP thread) 12mm × 3/8"	12	3/8	10	150	BSI
PM011214E	Straight Adaptor (BSP thread) 12mm × 1/2"	12	1/2	10	150	BSI
PM011513E	Straight Adaptor (BSP thread) 15mm × 3/8"	15	3/8	10	150	BSI
PM011514E	Straight Adaptor (BSP thread) 15mm × 1/2"	15	1/2	10	150	BSI
PM011516E	Straight Adaptor (BSP thread) 15mm × 3/4"	15	3/4	10	150	BSI
PM011814E	Straight Adaptor (BSP thread) 18mm × 1/2"	18	1/2	–	70	BSI
PM012216E	Straight Adaptor (BSP thread) 22mm × 3/4"	22	3/4	–	50	BSI
PM012818E	Straight Adaptor (BSP thread) 28mm × 1"	28	1	–	30	BSI
