SPC18 Series Semi-Submersible Column Pump

#NSXXXXXX

Product Description

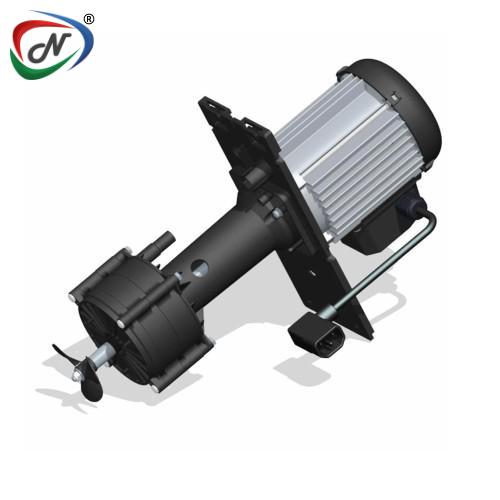

SPC18 Series Semi-Submersible Column Pump

MAIN FEATURES:

FLOW RATE: UP TO 18.0 LITRES/MINUTE (4.8 gallons/minute) OPEN FLOW MAXIMUM 18.0m (59') HEAD

DESIGNED FOR SIMPLIFIED REMANUFACTURE

12MM MOTOR SHAFT WITH ANGULAR CONTACT DRIVE END BEARING FOR LONG LIFE

FLATTED PUMP SHAFT FOR POSITIVE IMPELLER DRIVE & EASE OF MAINTENANCE

FITTED WITH LIQUID INGRESS PREVENTION SYSTEM (LIPS)

TOP MOUNTED WITH UNIVERSAL MOUNTING PLATE

IPX5 MOTOR HOUSING

THREE STAGE PUMP HEAD – FITTED WITH 3 BLADES

APPLICATIONS:

Designed for continuous operation in chillers, coolers, vending and general water applications.

NESPL is An Exclusive Distributor of Flojet Products in India.

NESPL has been associated with Flojet for almost a decade now. We can provide High Quality SPC18 Series Semi-Submersible Column Pump. Anywhere, at the right prices as well.

SPECIFICATIONS	SPC18
Materials of Construction	PP & SS mounting plate, Glass filled ABS column and pump body, PP impellers, SS shaft, Nylon agitator
Port Type	11 or 12.5mm hose stub
Voltage	230 (VAC)
Frequency	50/60 (Hz)
Max. Liquid Temperature	-20 to 85 (°C)
Max. System Pressure	1.8 (bar)
Dimensions (H x W x D)	378.5 x 146.5 x 146.5 (mm)
Weight	3.7 (kg)
