02100760A DIAPHRAGM PUMP MPU
#NSSP003001
Product Description

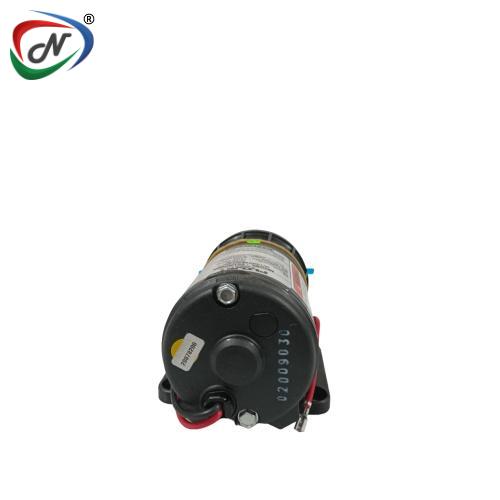

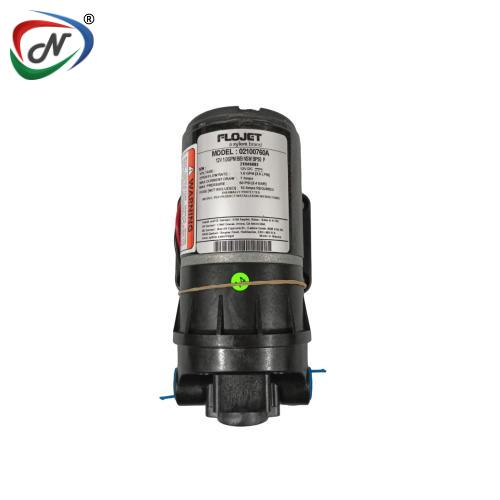

02100760A DIAPHRAGM PUMP MPU D I I 12V BUN 1C BP58
- Diaphragm pumps use a flexible membrane (diaphragm) to
create suction and discharge pressures.
- This design is often chosen for its ability to handle
fluids that may contain solids or abrasive materials without damage.
- Diaphragm pumps are often specified with a maximum
flow rate and pressure rating.
- These values can vary significantly based on the model
and intended use but are critical for determining suitability for specific applications.
- Diaphragm pumps are used in a wide range of
applications including agriculture, automotive, marine, and industrial sectors.
- They are suitable for transferring liquids, including water, chemicals, oils, and other fluids that require gentle handling or specific flow characteristics.
Main Features:
- Self-priming diaphragm
pump with DC electric motor.
- Model No. Duplex Series
- Intermittent duty
- Duplex diaphragm design
allows extended dry running
- Self primes up to 7 feet
vertical lift
Main Specifications:
|
Voltage |
12V DC |
|
Flow Rate |
1.0 GPM (3.8 LPM) |
|
Max Current |
7 Amps |
|
Max Pressure |
50 PSI (3.4 Bar) |
Soft Drink Industry
Various Industry Products
Additional Information
| NESPL Code | NSSP003001 |
| Manufacturer Code | 02100760A |
| HSN Code | 84138190 |
| Manufacturer | FLOJET / XYLEM PUMPS |
| Type | Pump |
