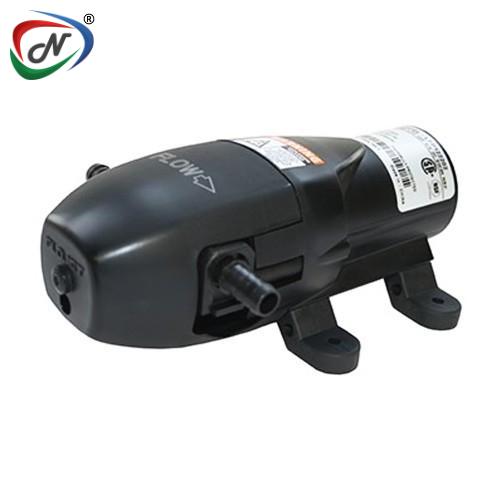

LF Plus Series

#NXXX00XX

Product Description

LF Plus Series Applications: General Industrial;Chemical washdown; Evaporative Cooling Systems;Fluid Transfer Automotive;Fluid Exchange;Agricultural;Fogging / Misting; Boom Sprayers; Beverage Dispense; Beverage Transfer Specs :- Amp Draw 2.5 Amp @ 25 psi (1.7 bar) Approvals CSA, CE*, NSF*, UL* Dimensions (H x W x D) 6.57 x 4.05 x 2.66 (inches) 164.3 x 102.9 x 67.6 (mm) Electrical Characteristics Permanent Magnet Motor Flow Rate US gallons (litres) 1.0 GPM (3.78 LPM) @ open flow Motor Type Permanent magnet motor Operating temperature 110°F (43°C) maximum liquid temperature Warranty Period 1 year Duty Cycle Intermittent Body Materials Polypropylene Materials of Construction Santoprene or Geolast Diaphragms Check Valve Viton or EPDM Check Valve Spring 316 Stainless Steel Product Inlet Fitting Quick Disconnect 3/8 IN (9.5 mm) hose barb Product Outlet Fitting Quick Disconnect 3/8 IN (9.5 MM) hose barb Operating Pressure 40 PSI (2.75 Bar) Max. (no pressure switch version) Pressure Switch Setting 25 PSI (1.7 bar)
