PM201210E REDUCING STRAIGHT CONNECTOR 12 MM X 10 MM

#NSSP005901

Product Description

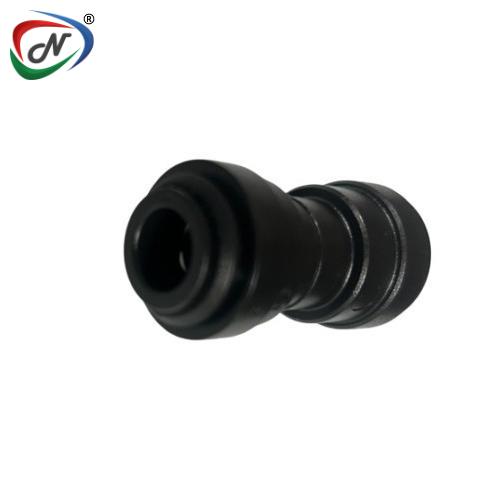

PM201210E REDUCING STRAIGHT CONNECTOR 12 MM X 10 MM

Reduces the supply feed to a smaller outlet size.

The John Guest reducing straight connector push-fit fitting connects two pipes of differing connection sizes. It is fast and easy to install; John Guest Air and Pneumatics provides an immediate connection and an airtight seal without requiring tools, hot works, or sealing agents. Air piping systems can be established and installed 50% faster than conventional methods.

The distinctive collet locking design securely and firmly holds the pipe in position without deforming it or impeding flow. Additionally, the fittings are completely demountable, which minimizes system downtime during maintenance and facilitates quick and easy modifications or extensions of systems.

Main Features:

Robust acetal copolymer fitting equipped with a nitrile O-Ring.
Sealed connection offering excellent flow properties.
Immediate push-fit connection that can be disassembled without the need for tools.
Reliable collets cover that safeguards against unintentional disconnection.
Appropriate for air and pneumatic piping systems operating at pressures up to 10 bar.
Perfect for applications involving air, inert gases, and vacuum.
Food-grade fitting that is safe for use with drinking liquids.
Compatible with both soft metal and plastic pipes or tubing.

Main Specifications:

SKU	Description	Pipe OD mm	Pipe OD mm	Quantity per bag	Quantity per box	Accreditations
PM200604E	Reducing Straight Connector 6mm × 4mm	6	4	10	400	BSI
PM200804E	Reducing Straight Connector 8mm × 4mm	8	4	10	300	BSI
PM200806E	Reducing Straight Connector 8mm × 6mm	8	6	10	200	BSI
PM201004E	Reducing Straight Connector 10mm × 4mm	10	4	10	200	BSI
PM201006E	Reducing Straight Connector 10mm × 6mm	10	6	10	200	BSI
PM201008E	Reducing Straight Connector 10mm × 8mm	10	8	10	200	BSI
PM201208E	Reducing Straight Connector 12mm × 8mm	12	8	10	100	BSI
PM201210E	Reducing Straight Connector 12mm × 10mm	12	10	10	100	BSI
