PI211208S John Guest Reducing Elbow 3/8

#NSSP003492

Product Description

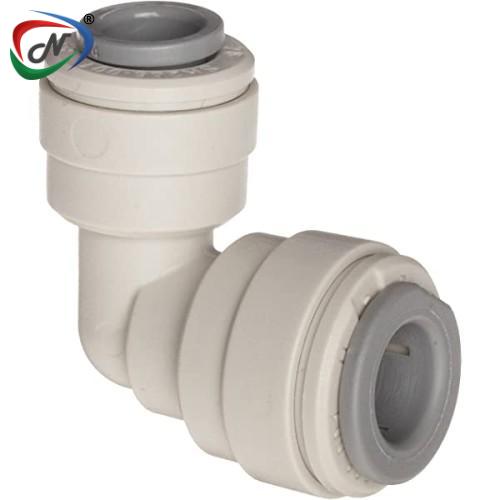

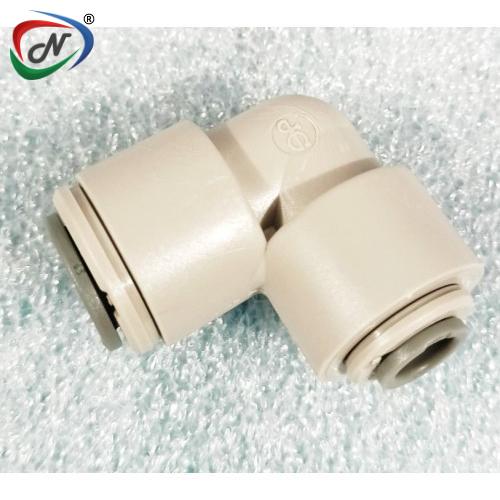

PI211208S John Guest Reducing Elbow 3/8" X 1/4"

The John Guest grey push-fit acetal reducing elbow fitting facilitates the connection of two pipes of differing sizes, creating a 90° bend. This fitting is designed for quick and straightforward installation, allowing for an immediate push-fit connection that ensures a leak-proof seal without the necessity for tools, heat, or sealing compounds.

The innovative collet locking mechanism effectively secures the pipe in position without causing deformation or impeding flow. These fittings are resistant to corrosion and can be easily disassembled, thereby enhancing system efficiency and minimizing downtime during maintenance activities.

Main Features:

The acetal copolymer material is both rigid and durable.

It is classified as food-grade, making it appropriate for use with food products, drinking liquids, inert gases, air, as well as in pneumatic and vacuum applications.

The design features an instant push-fit connection that ensures a leak-proof seal.

Users can connect, disconnect, and reconnect the components in mere seconds without the need for tools.

The absence of scale accumulation enhances both performance and the longevity of the equipment.

Additionally, it boasts excellent flow characteristics and is compatible with LLDPE or soft metal piping and tubing.

Main Specifications:

SKU	Description	Tube OD "	Tube OD "	Accreditations
PI211006S	John Guest Reducing Elbow 5/16" × 3/16"	5/16	3/16	BSI WRAS
PI211008S	John Guest Reducing Elbow 5/16" × 1/4"	5/16	1/4	BSI WRAS
PI211206S	John Guest Reducing Elbow 3/8" × 3/16"	3/8	3/16	BSI WRAS
PI211208S	John Guest Reducing Elbow 3/8" × 1/4"	3/8	1/4	BSI WRAS
PI211210S	John Guest Reducing Elbow 3/8" × 5/16"	3/8	5/16	BSI WRAS
PI211610S	John Guest Reducing Elbow 1/2" × 5/16"	1/2	5/16	BSI WRAS
PI211612S	John Guest Reducing Elbow 1/2" × 3/8"	1/2	3/8	BSI WRAS
PM210804S	John Guest Reducing Elbow 5/16" × 5/32''	5/16	5/32	BSI WRAS
