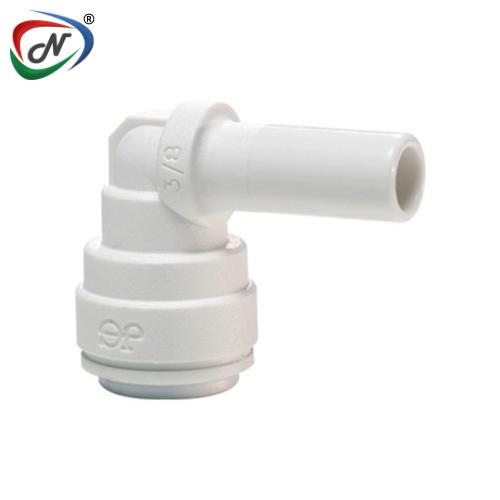

PP220808W John Guest Polypropylene Stem Elbow

#NSSP007844

Product Description

PP220808W John Guest Polypropylene Stem Elbow 1/4 " X 1/4 "

Effortlessly and swiftly connects two John Guest push-fit fittings to form a 90° swivel connection.

The John Guest push-fit polypropylene stem elbow fitting converts a push-fit connection into a 90° swivel type connection. It is quick and easy to install, allowing John Guest push-fit fittings to establish an immediate push-fit connection and a leak-proof seal without requiring tools, hot works, or sealing agents.

The innovative collet locking mechanism securely and firmly retains the pipe in position without causing deformation or impeding flow. These fittings are resistant to corrosion and can be fully disassembled, enhancing system efficiency and minimizing downtime during maintenance.

Main Features:

The combination of polypropylene material and EPDM O-Ring provides excellent chemical resistance.
It is appropriate for use with potable water, intermittent hot water (maximum temperature of 65°C), as well as in water treatment and purification applications (however, it is not suitable for compressed air or vacuum applications).
The instant push-fit connection ensures a leak-tight seal.
Connections can be made, disconnected, and reconnected in mere seconds without the need for tools.
The absence of scale build up enhances both performance and the lifespan of the equipment.
It exhibits superior flow characteristics.
Additionally, it is compatible with LLDPE or soft metal pipes/tubes.

Main Specifications:

SKU	Description	Stem OD "	Tube OD "	Accreditations
PP220808W	John Guest Polypropylene Stem Elbow 1/4" × 1/4"	1/4	1/4	BSI WRAS
PP221208W	John Guest Polypropylene Stem Elbow 3/8" × 1/4"	3/8	1/4	BSI WRAS
PP221212W	John Guest Polypropylene Stem Elbow 3/8" × 3/8"	3/8	3/8	BSI WRAS
PP221212W-B	John Guest Polypropylene Stem Elbow with Blue Collet 3/8" × 3/8"	3/8	3/8	BSI WRAS
PP221616W	John Guest Polypropylene Stem Elbow 1/2" × 1/2"	1/2	1/2	BSI WRAS
PPM220808W	John Guest Polypropylene Stem Elbow 5/16" × 5/16"	5/16	5/16	BSI WRAS
