HFCD12612 3/8 Compression Valved Panel Mount Coupling Body
#NCPC373
Product Description
HFCD12612
3/8 Compression Valved Panel Mount Coupling Body
Main Features:
- High
Efficiency Valve
- Ergonomic
Design
- Polypropylene
Material
- Compatible
Main Benefits:
- More
flow in a compact size
- Easy
to grip, simple to operate
- Chemically
resistant & gamma sterilizable
- Mates
with HFC35 & HFC57 couplings
Main Specifications:
- Material: Polypropylene
- Material
Finish: Molded Grey
- Pressure
Range: Vacuum to 60 psi, 4.2 bar
- Color: Grey
- Mounting
Option: Panel Mount
- Temperature
Range: 32°F - 160°F (0°C - 71°C)
- Seal
Options: EPDM
- Valve
Spring: 316 Stainless Steel
- Valve
Option: Valved
- Body
Type: Body
- Bag
Qty: 10
COUPLING BODIES - Polypropylene
|
TERMINATION |
BULKHEAD
PANEL MOUNT COMPRESSION |
|
TUBING/THREAD
SIZE |
3/8"
OD |
|
METRIC EQ |
9.5mm
OD |
|
STRAIGHT
THRU |
HFC12612 |
|
SHUTOFF |
HFCD12612 |
|
A(Height/Diameter) |
1.82
(46.2) |
|
B( Total Length) |
2.96
(75.2) |
*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters.
WARNING: It is the customer's responsibility to test the
suitability of CPC products in their own application conditions.
Note: Image is just for ref.

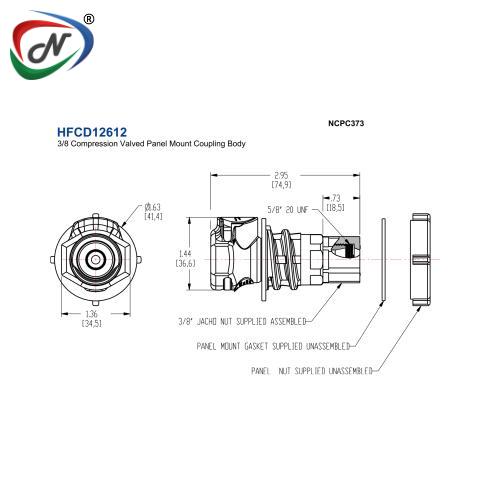

Click to download : Dimensions/Design Medical (Core) & Thermal Industry
Additional Information
| NESPL Code | NCPC373 |
| Manufacturer Code | HFCD12612 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
