PMC1204 1/4 PTF Non-Valved Panel Mount Coupling Body

PMC1204 1/4 PTF Non-Valved Panel Mount Coupling Body

PMC Series couplings, designed with a 1/8" flow, are suitable for a diverse range of general-purpose applications. Equipped with the CPC thumb latch, the PMC couplings provide a more user-friendly experience compared to traditional ball-and-sleeve connector designs. Their one-handed connection and disconnection capability, along with integral terminations, position the PMC as a preferred option for both usability and manufacturing efficiency.

These couplings also present the advantage of various configurations and terminations, allowing compatibility with both MC metal and PMC12 polypropylene couplings. Additionally, NSF-listed versions are offered.

Main Specifications:

• Material: Acetal
• Material Finish: Natural
• Color: White
• Mounting Option: Panel Mount
• Temperature Range: -40°F - 180°F (-40°C - 82°C)
• Valve Option: Non-Valved
• Body Type: Bodies
• Bag Qty: 25

  Features	Benefits
  Hose barb shroud	Extra protection for the 1/16" hose barb
  Integral terminations	Fewer leak points, shorter assemblies, faster installations
  Compatible	Mates with PMC12 and MC Series couplings
  Clicks when connected	Assurance of a reliable connection

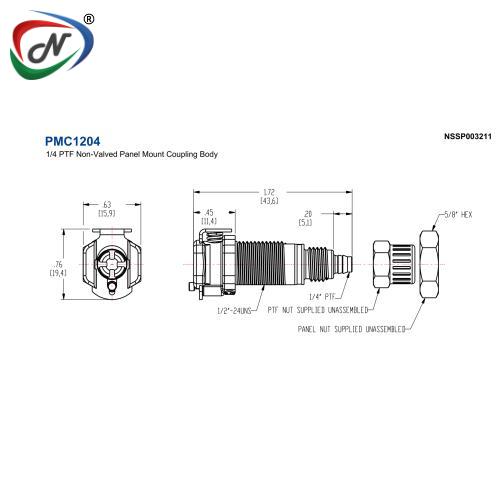

COUPLING BODY - Acetal

*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters. Couplings are pictured with valves unless otherwise noted.

†NOTE: CPC's Ferruleless Polytube Fitting terminations do not require ferrules to achieve a secure connection, which makes them easier to use and reuse. PTF fittings are designed for semi-rigid tubing, i.e., polyethylene, nylon, polyurethane, etc.

WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.

Note: Image is just for ref.
