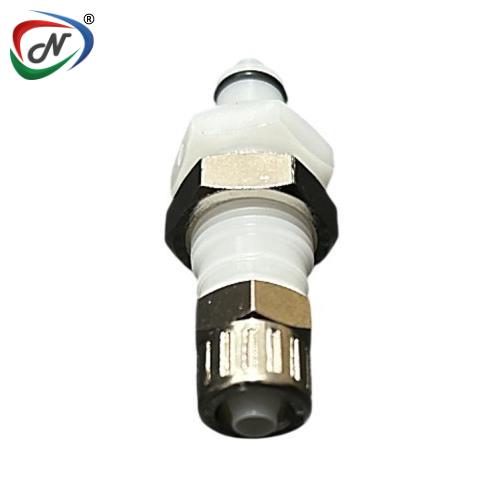

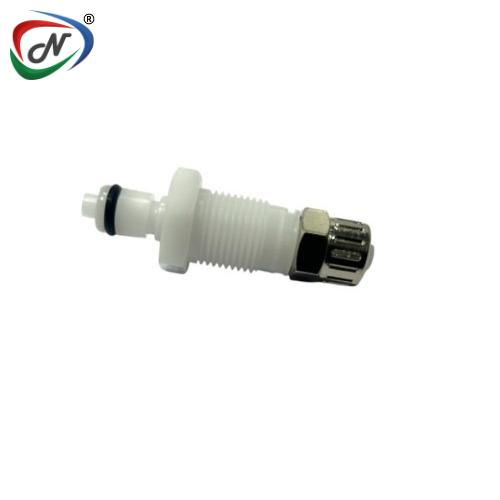

PMCD4004 1/4 PTF Valved Panel Mount Coupling Insert

PMCD4004

1/4 PTF Valved Panel Mount Coupling Insert

PMC Series couplings, designed with a 1/8" flow, are suitable for a diverse range of general-purpose applications. Equipped with the CPC thumb latch, the PMC couplings provide a more user-friendly experience compared to traditional ball-and-sleeve connector designs. Their one-handed connection and disconnection capability, along with integral terminations, position the PMC as a preferred option for both usability and manufacturing efficiency.

These couplings also present the advantage of various configurations and terminations, allowing compatibility with both MC metal and PMC12 polypropylene couplings. Additionally, NSF-listed versions are offered.

 Main Specifications:

• Material: Acetal
• Material Finish: Natural
• Pressure Range: Vacuum to 120 psi, 8.3 bar
• Color: White
• Mounting Option: Panel Mount
• Temperature Range: -40°F - 180°F (-40°C - 82°C)
• Seal Options: BUNA-N
• Valve Spring: 316 Stainless Steel
• Valve Option: Valved
• Body Type: Insert
• Bag Qty: 25

COUPLING INSERTS - Acetal

*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters. Couplings are pictured with valves unless otherwise noted.

†NOTE: CPC's Ferruleless Polytube Fitting terminations do not require ferrules to achieve a secure connection, which makes them easier to use and reuse. PTF fittings are designed for semi-rigid tubing, i.e., polyethylene, nylon, polyurethane, etc.

WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.

Note: Image is just for ref.
