Bio-Sil® 1450 Tubing

#SGN02

Product Description

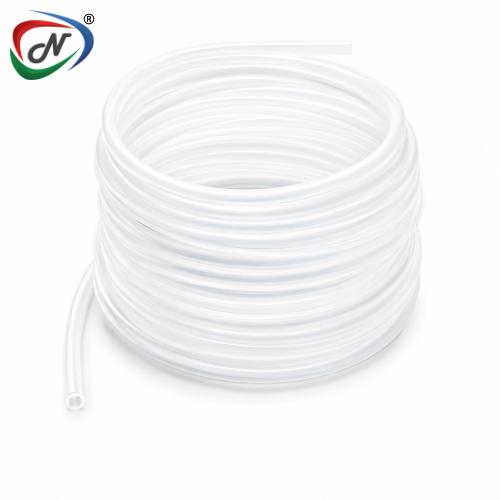

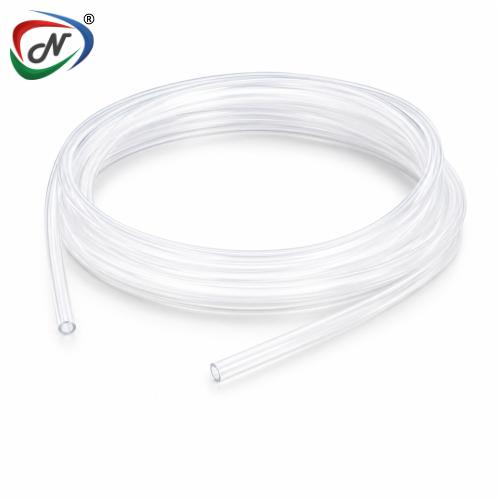

Bio-Sil® 1450 Tubing

Bio-Sil® 1450 is a distinctive silicone formulation cured with platinum, created by Saint-Gobain. This tubing, with a durometer of 50 (shore A), is extruded and packaged within a certified clean room environment. Bio-Sil® 1450 tubing has successfully fulfilled the requirements of several ISO 10993 and USP tests, rendering it highly suitable for a variety of medical applications. The physical characteristics of Bio-Sil® 1450 position it as an excellent option for drug delivery, enteral nutrition, minimally invasive surgical procedures, and organ preservation.

Main Features:

Platinum-cured tubing.
50 Shore A hardness.
Highly flexible.
Autoclavable, stable in EtO and gamma radiation.
Temperature range from -80°F (-62°C) to 500°F (260°C).
The tubing complies with the standards of multiple ISO 10993 and USP tests.

Main Specifications:

Property	ASTM Method	Value or Rating (metric)
Durometer Hardness, Shore A	D2240	52
Color		Translucent
Tensile Strength, psi (MPa)	D412	1293 (8.91 MPa)
Ultimate Elongation, 100%	D412	719
Tear Resistance, Die B, ppi (kN/m)	D624	164 (50.1 kN/m)
Specific Gravity (g/cm2)	D792	1.14 (g/cm²)
Tensile Modulus at 200% Elongation, psi (MPa)	D412	241 (1.38 Mpa)
